30T vulcanizing machine, flat vulcanizing machine, closed vulcanizing machine, experimental vulcanizing machine, experimental electric vulcanizing machine

The raw materials are placed in the mold and clamped between the electric heating plates of the machine to apply pressure and temperature, forming the raw materials for testing and serving as the basis for mass production of ingredients in the factory. This machine is equipped with a PLC program controlled color touch screen, and the human-machine interface operating system can set pressure, temperature, time, and exhaust frequency. The vulcanization process is displayed in real time

  • LINA
  • vulcanizing press
  • China
lina_paul@linajx.com Contact us

Product Detail

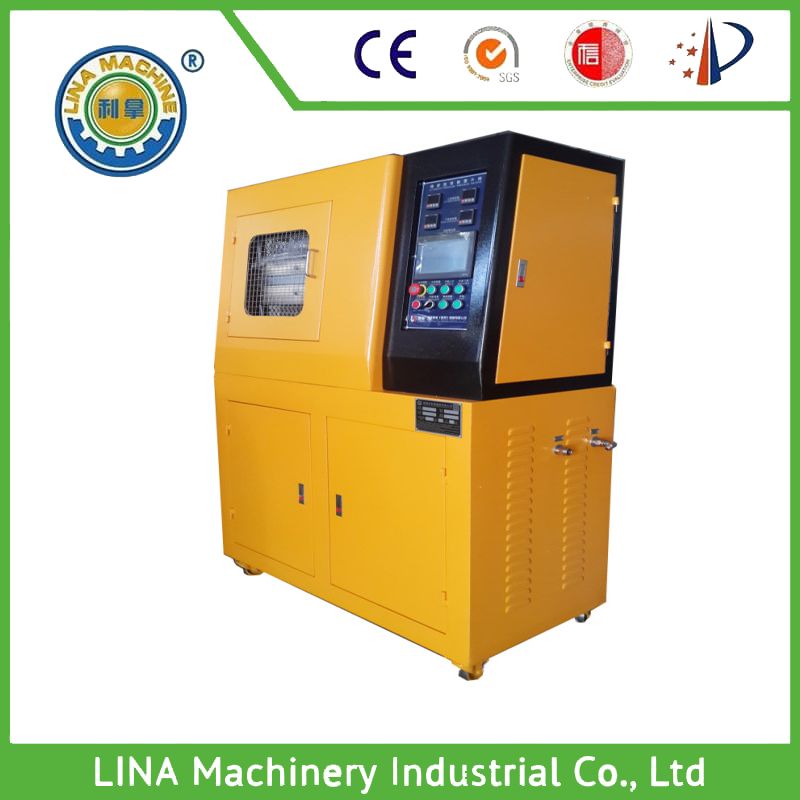

The 30T double-layer sealed flat vulcanizing machine is selected from Guangdong Lina. In the past 20 years, the 30T double-layer sealed flat vulcanizing machine manufacturer has a processing base of 30000 square meters, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

1LN-30T closed double-layer flat vulcanizing machineMain configuration table:

Accessory name

Configuration Overview

brand

hydraulic system

Yuken

Taiwan Famous Brand

Temperature Control System

Double layer heating

Lina brand

electric control system

Omronwait

International famous brands

Number of pressure tables

Single cylinder double-layer

Lina Famous Brand

Note:

The equipment has low noise, long service life, extremely low maintenance frequency, and is safe and precise.



IIMain parameters table of LN-30T closed double-layer flat vulcanizing machine:

serial number

name

Specifications

Remarks

1

model

LN-30T


2

Clamping pressure

30T


3

structure

double-layer

electric heating

4

Mold opening method

Automatic up and down


5

temperature control

Heating~300℃

Adjustable and automatic constant temperature

6

Heating method

electric heating

Cylinder with extremely multi-stage heating system

7

temperature accuracy

about±2℃

    PID automatic calculation of constant temperature is more accurate

8

Temperature control display

LED four point display

Real time display of set temperature and actual temperature

9

pressure control

LED controller retesting

(Pressure regulator adjustable)

10

timer

1S--999S

The segmented control time for mold opening and pressurization can be adjusted arbitrarily

11

Electric heating plate area

   300mm×300mm

Surface precision grinding and anti-corrosion chromium layer

12

Distance between electric heating plates

90mm


13

volume

1250×650×1650mm


14

weight

800KG


15

power supply

15.3∮,AC380V,20A


Note:

1

temperature control

There are two temperature control systems for a single opening to ensure accurate temperature control of the equipment

2

touch screen control

It can achieve manual and automatic control. Automatic control can achieve functions such as mold closing, exhaust, temperature control, vulcanization timing, alarm, mold opening and unloading; Individual temperature control display for upper and lower layers of temperature



3、 Factory delivery schedule:

serial number

name

quantity

Remarks

1

toolbox

a set


2

sealing ring

a set


3

heating tube

a set


4

Instruction manual, warranty card

a copy
