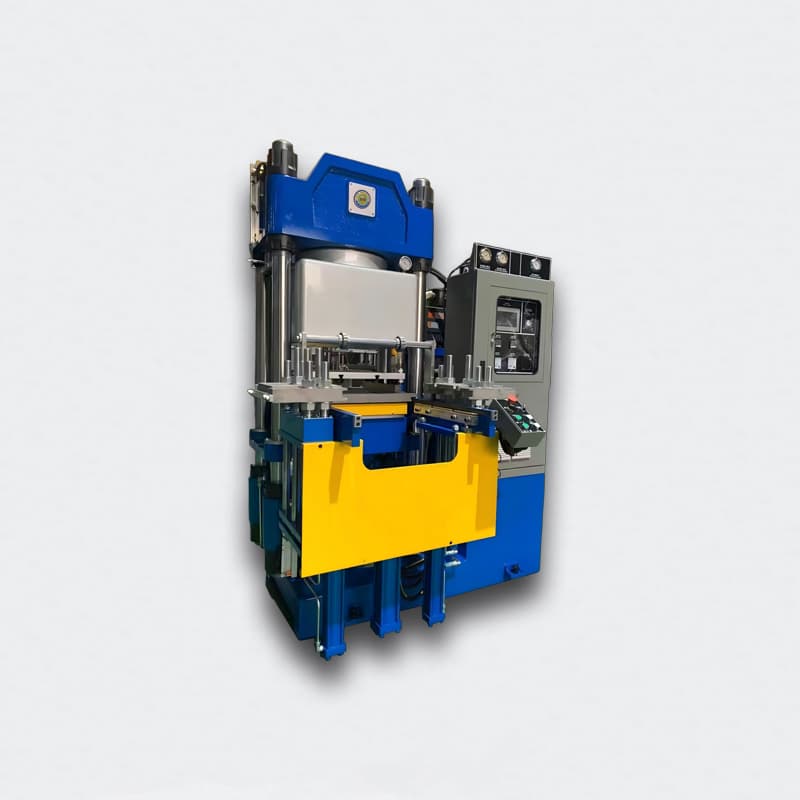

LN-200TV 200-Ton Vacuum Auto-Feed & Mold-Open Compression Press

1. Product Positioning
The LN-200TV is a four-column down-acting compression molding press rated at 200 tons. It integrates vacuum degassing, servo pressure regulation, and automatic mold opening/feeding in one machine. Change molds in 3 minutes and continuously produce bubble-free, high-precision rubber parts.
2. Core Features
  1. 2000 kN Servo Locking Force
    Yaskawa servo pump + precision pressure sensor, stepless 0–20 MPa regulation, pressure fluctuation ≤ ±0.3 bar.
  2. Vacuum Degassing System
    Built-in vacuum chamber + Germany Busch pump, reaches ‑0.095 MPa within 30 s; programmable vacuum, cure & degas stages.
  3. Auto Feed & Mold Opening
    Servo slide table ±0.1 mm positioning; automatic part ejection and robot pick-up enable lights-out production.
  4. Precision Temperature Control
    500 × 500 mm mirror-chrome platens, zone PID control, uniformity ≤ ±1 °C; 25–250 °C (350 °C option).
  5. Smart HMI
    10″ touch screen, 200 recipe storage; optional MES interface for real-time OEE, energy & status upload.
3. Key Specifications
Clamping Force200 ton (2000 kN)
Platen Size500 × 500 mm (600 × 600 mm optional)
Max. Daylight / Stroke450 mm / 300 mm
Vacuum Level≤ ‑0.095 MPa
Temp. Uniformity≤ ±1 °C
Servo Motor Power11 kW
Footprint2.3 × 1.7 × 2.5 m
Weight≈ 3.8 t
4. Applicable Materials & Products
  • Automotive oil seals, O-rings, anti-vibration pads
  • 5G thermal pads, medical butyl stoppers
  • FKM, AEM, HNBR and other specialty elastomers
5. Optional Configurations
  • Dual-station shuttle table, cycle time ↓ 40 %
  • Robot pick-up + vision inspection
  • Explosion-proof Ex dⅡBT4
  • High-temp 350 °C version
6. Manufacturer & Service
Built by Guangdong LINA Industrial Co., Ltd. 5 000 m² demo center in Houjie, Dongguan, offers free trials. Nationwide 48 h on-site service, 1-year warranty, lifetime technical upgrades.
