2 Roll Mill, also known as a 2 roll mixing mill, is a machine used in the rubber and plastic processing industries for mixing and compounding raw materials. It typically consists of two horizontally positioned parallel rolls, which rotate in opposite directions at different speeds. The gap between the rolls can be adjusted to control the thickness of the material being processed.
In the rubber industry, 2 roll mill are commonly used for mixing rubber compounds with various additives and fillers to achieve the desired properties such as strength, elasticity, and durability. These mills are crucial in the production of rubber products like tires, belts, hoses, and other molded rubber goods.
Similarly, in the plastic industry, 2 roll mill are utilized for blending plastic resins with additives and colorants to create homogeneous mixtures for further processing. This can include extrusion, injection molding, or other forming processes.

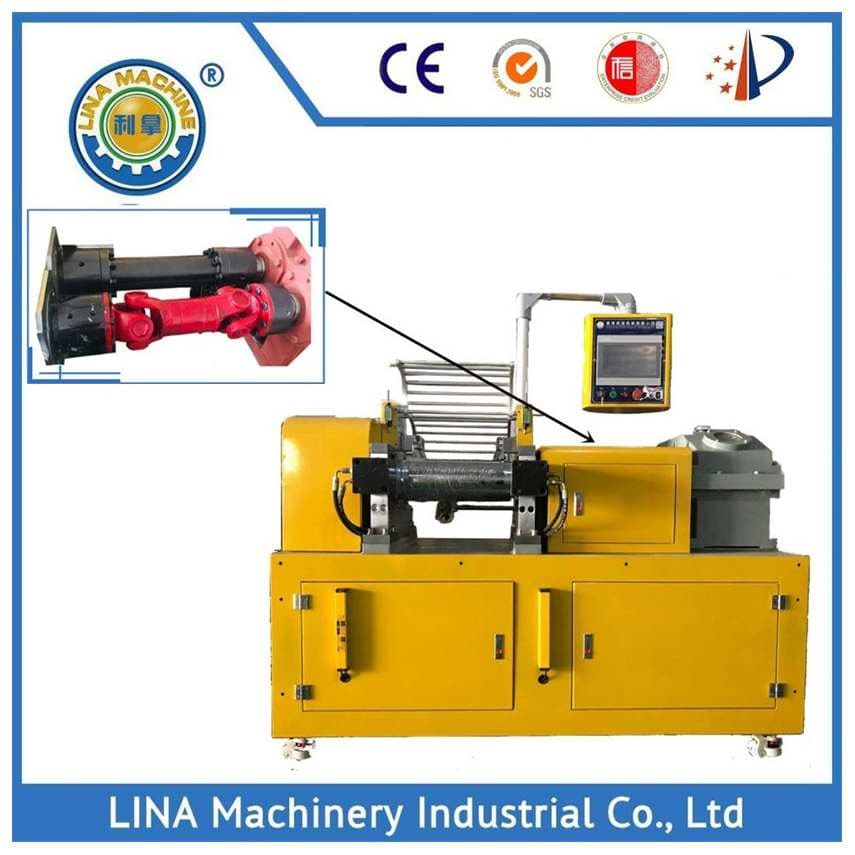

Universal Joint Driving:
Universal joint (U-joint) driving refers to the mechanism used to transmit power from the motor to the rolls in the 2 roll mill. Universal joints are mechanical devices that allow rotational movement between two shafts that are not in line with each other. They are often used in situations where there is misalignment or angular movement between the driving and driven shafts.

Features and Benefits:
Flexibility: The universal joint driving mechanism allows for flexibility in the positioning of the motor relative to the rolls, accommodating misalignment or angular displacement.
Smooth Transmission: Universal joints provide smooth transmission of power even in situations where there are slight misalignments between the shafts.
Reliability: U-joints are durable and reliable components, suitable for heavy-duty industrial applications.
Adjustability: The design of the universal joint allows for adjustments to be made to compensate for wear or to fine-tune the operation of the 2 roll mill.

Applications:
Rubber processing: Mixing and compounding of rubber compounds for the production of tires, hoses, belts, etc.
Plastic processing: Mixing and refining of plastic materials for molding, extrusion, or other forming processes.
Polymer research and development: Testing and experimentation with various polymer formulations and compounds.

Item	Specification	Remarks
Type	LN-K-230/9
Roller Diameter	230 mm
Roller Width	600 mm
Linear Velocity of Front Roller	18r/min
Speed Ratio of Rollers (Front/Rear)	1:1.24
Maximum Roller Distance	8 mm
Motor Powder	11 KW
Weight	About 1800 KG
Dimensions	About 2210*1100*1800
