Choose Guangdong Lina for the 14 inch open mill. With nearly 20 years of experience as a 14 inch open mill manufacturer, we have a 30000 square meter processing base, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

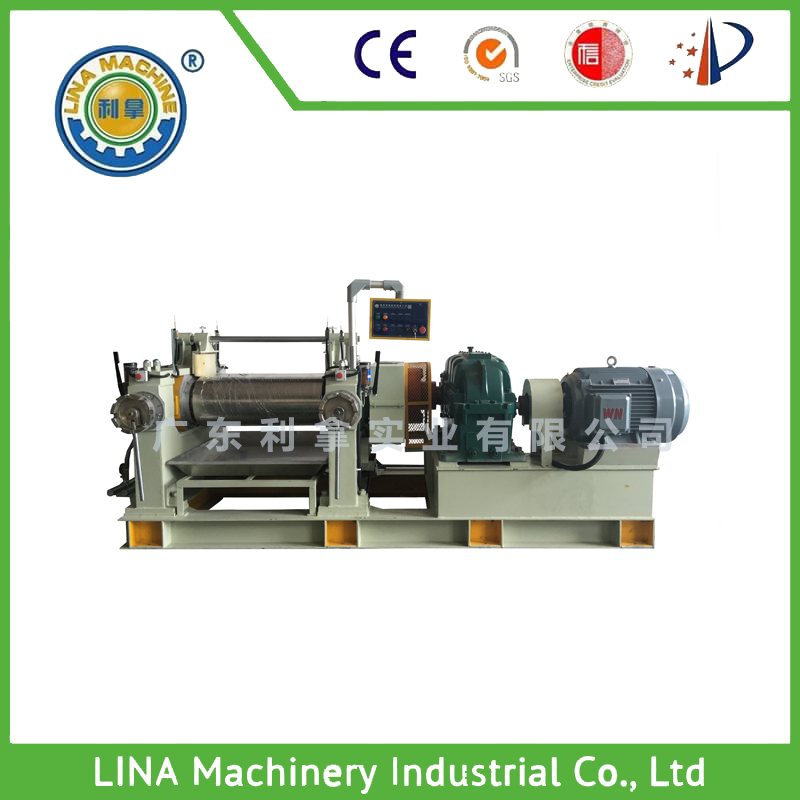

The Lina 14 inch open mill/14 inch rubber mixing machine is mainly used for the production of chemical raw materials, rubber, silicone, polymer blending, pigment, stabilizer, stabilizer and other mixing, color matching, mixing of raw rubber and compounding agents, or thermal refining of rubber materials and compression molding of rubber materials.

Working principle of 14 inch open mill

The main working components of the 14 inch open mill/14 inch rubber mixing machine are two hollow rollers or drilling rollers that rotate inward in opposite directions. The device on the operator's side is called the front roller, which can be manually or electrically moved horizontally back and forth to adjust the roller distance and meet operational requirements; The rear roller is fixed and cannot move forward or backward. The two rollers are generally of the same size and rotate relative to each other at different speeds. Raw rubber or rubber material is rolled into the gap between the two rollers as the rollers rotate, and is subjected to strong shear to achieve the purpose of plasticizing or mixing

During the operation of the 14 inch open mill, the master of the open mill flips the rubber while the two rollers rotate relative to each other. Different speed ratios are used to mix the rubber compound while adding the compounding agent (rubber additive, etc.). The rotational force of the two rollers of the open mill is used to shear the material, thereby breaking the molecular chain and allowing the material to fully mix with the compounding agent to meet industrial requirements.

Technical parameters of 14 inch open mill

Service commitment for 14 inch open mill

1. Provide on-site installation guidance.

2. Responsible for on-site debugging and testing of supplied equipment until it passes acceptance.

3. Responsible for providing on-site operation and maintenance training to the personnel of Party A.

4. The correct use of the unit comes with a one-year free warranty and a long-term guarantee of spare parts supply.

5. Long term provision of technical consulting services.

6. Within and outside the warranty period, the supplier shall provide clear solutions within 24 hours after receiving notification of equipment failure from the purchaser. If the supplier needs to send personnel, they should be responsible for on-site repairs within 72 hours domestically, and arrive in the Pearl River Delta within 5 hours
