The abbreviation for open rubber mixing machine. Rubber factory is a type of rubber mixing machinery with exposed rollers used for preparing plastic rubber, mixed rubber, or conducting hot refining and molding.

The main working components are two hollow rollers or drilling rollers that rotate inward in opposite directions. The device on the operator's side is called the front roller, which can be manually or electrically moved horizontally back and forth to adjust the roller distance and meet operational requirements; The rear roller is fixed and cannot move forward or backward. The two rollers are generally of the same size and rotate relative to each other at different speeds. Raw rubber or rubber material is rolled into the gap between the two rollers as the rollers rotate, and is subjected to strong shear to achieve the purpose of plasticizing or mixing. The open mill is also used in plastic processing and other departments.
Open mill is the abbreviation for open type plasticizing machine. In plastic product factories, people are accustomed to calling it a two roll machine. The open mill is a type of mixing plastic equipment that has been used in plastic product production plants for a long time. On the rolling mill production line, the open mill is located before the rolling mill and after the mixer, and its function is to mix and plasticize the uniformly mixed raw materials, providing a relatively uniform molten material for the rolling mill to roll and shape plastic products. When producing cable materials, the open mill can directly mold the powdered materials mixed according to the formula into molten materials, and then press them into sheet shaped strips, so that the granulator can cut them into granules. On the floor leather production line, a uniformly mixed and plasticized base coating can be directly provided for the fabric leather. Recycled waste plastic films (sheets) can also be re molded and remade on an open mill.

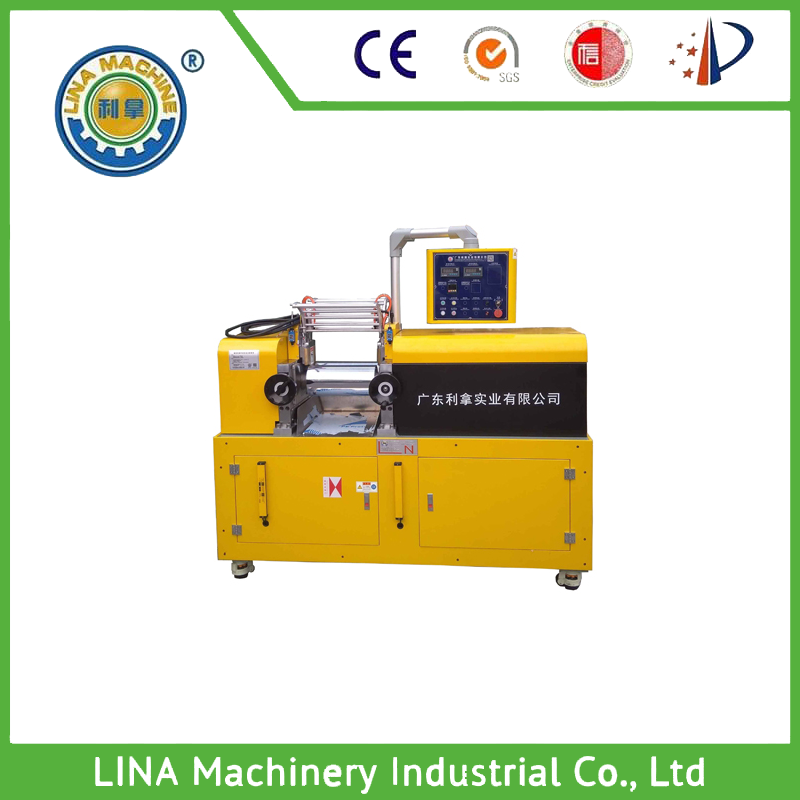

Structural characteristics of 8-inch rubber mixing machine/8-inch open mill

1. The core technology and main components come from Taiwan;
2. The overall base plate is easy to install, and the transmission mode is single axis output to ensure high torque. Imported bearings reduce rubbing force to ensure power saving, low noise, and even and controllable rubber thickness;
3. The roller is made of vanadium titanium alloy cold hard cast iron, with a hard and wear-resistant surface that is durable Precision machining of the inner cavity of the roller ensures rapid and uniform cooling of the roller body;

4. The machine adopts manual distance adjustment, precise thickness control, and easy operation;

5. The machine is equipped with emergency brakes. In the event of an emergency, there are emergency switches at all four corners, which facilitate multi position braking and quick stopping of the machine;
6. The transmission device adopts a hard tooth surface reducer, which has a compact structure, high transmission efficiency, and low noise.

8-inch rubber mixing machine/8-inch open mill service commitment

1. Provide on-site installation guidance;
2. Responsible for on-site debugging and testing of supplied equipment until it passes acceptance inspection;
3. Responsible for on-site operation and maintenance training for the personnel of the consignee;
4. Under the correct operation of the unit, a one-year warranty is provided, and the supply of spare parts is guaranteed for a long time;
5. Long term provision of technical consulting services;
6. Within or outside the warranty period, the supplier shall provide a clear solution within 3 hours upon receiving notification of equipment malfunction from the purchaser; If supplier personnel are required to be present, they will arrive for maintenance within 12 hours in China and 5 hours in the Pearl River Delta region (excluding travel time) Foreign users may negotiate with foreign merchants based on their visa status.
