16 inch open mill price | 16 inch open mill manufacturer - Guangdong Lina

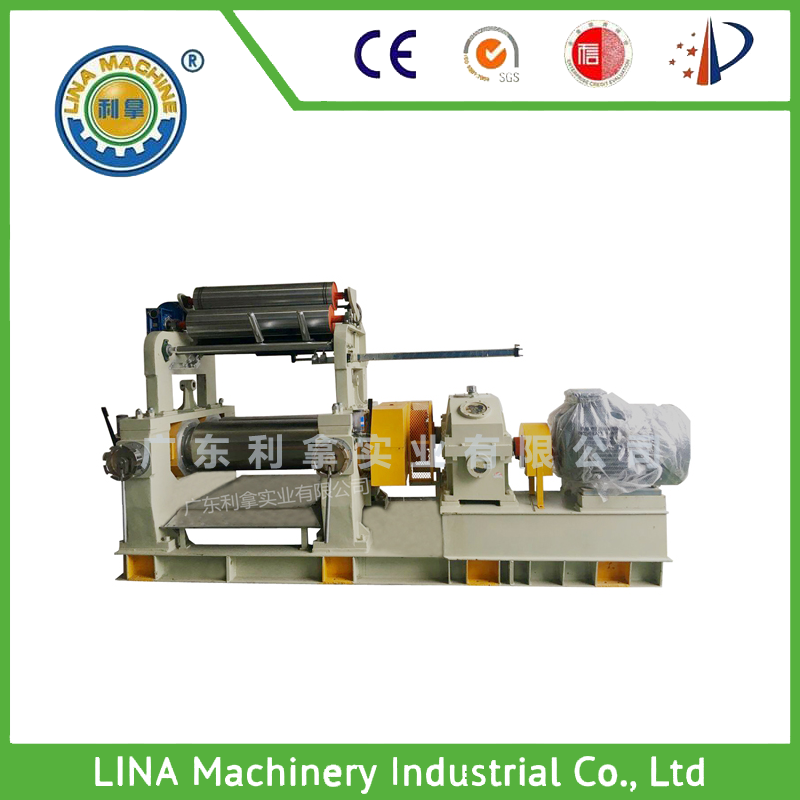

The 16 inch open mill is mainly used for mass production. Its rollers are made of international vanadium titanium cold hard cast iron material, which is hard, wear-resistant, and has high precision in roller clearance. With the safety device, temperature control system, and wear-resistant and heat-resistant technology treatment of the rollers, the 16 inch open mill has received unanimous praise from new and old customers!

  • LINA
  • Two Roll Mill
  • China
lina_paul@linajx.com Contact us

Product Detail

Choose Guangdong Lina for the 16 inch open mill. With nearly 20 years of experience as a 16 inch open mill manufacturer, we have a 30000 square meter processing base, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

Product Name16 inch open mill
brandLina
Price of 16 inch open millTelephone consultation (customizable)
Consultation Hotline180 3302 3380

The 16 inch open mill, also known as the 16 inch rubber mixing machine, is mainly used for rubber mixing. The open mill has an additional function compared to the internal mixer, which is that the open mill can also produce chips, while the internal mixer cannot.

When producing cable materials with a 16 inch open mill, the open mill can directly mold the powdered material mixed according to the formula into molten material, and then press it into sheet shaped strips, so that the granulator can cut it into granules. On the floor leather production line, a uniformly mixed and plasticized base coating can be directly provided for the fabric leather. Recycled waste plastic films (sheets) can also be re molded and remade on an open mill.

Technical parameters of 16 inch open mill (rubber mixing machine)


Project/Model

unit

LN-300/16 inch

Drum specifications

mm

400*1000

Front roller line speed

min

24

speed ratio


1:1.2-1.3

Maximum roller distance

mm

0~10

The amount of glue added at once is about

kg

20~35

Motor power

kw

40

Mechanical weight approximately

kg

8000

Exterior dimensions approximately

mm

4920*1780*1800mm


Application scope of 16 inch open mill

The 16 inch open mill is mainly used for mixing and plasticizing raw materials such as rubber products, shoe materials, rubber tires, automotive products, electronic products, plastic products (EVA/PVC/TPU/TPR/PP/PE/PA), wires and cables, metal powder, ceramic powder, zirconia, etc.

Features of Lina 16 inch open mill (16 inch rubber mixing machine)

1. The distance adjustment method is manual distance adjustment.

2. Roller bearings are located on rolling bearings, and the lubrication method for roller bearings is grease.

3. The machine is equipped with an overload protection device to protect the main components from damage due to overload.

4. The machine is equipped with emergency brakes. In case of an emergency, there are emergency switches at all four corners, which facilitate multi position braking and quick machine stop Pull the emergency switch and the machine will immediately brake, ensuring safety and reliability.

5. The overall base plate is easy to install, and the transmission mode is single axis output to ensure high torque. Imported bearings reduce rubbing force to ensure power saving, low noise, and even parallel controllability of rubber thickness

6. The core technology and main components come from Taiwan

7. The roller is made of vanadium titanium alloy cold hard cast iron, with a hard and wear-resistant surface that is durable The precision machining of the inner cavity of the roller ensures rapid and uniform cooling of the roller body

8. The transmission system adopts a hard tooth surface reducer, which has a compact structure, high transmission efficiency, and low noise Long service life

9. The machine adopts manual distance adjustment, precise thickness control, and easy operation,

10. The electronic control part adopts advanced domestic electrical components, which are easy to operate and have stable performance.
