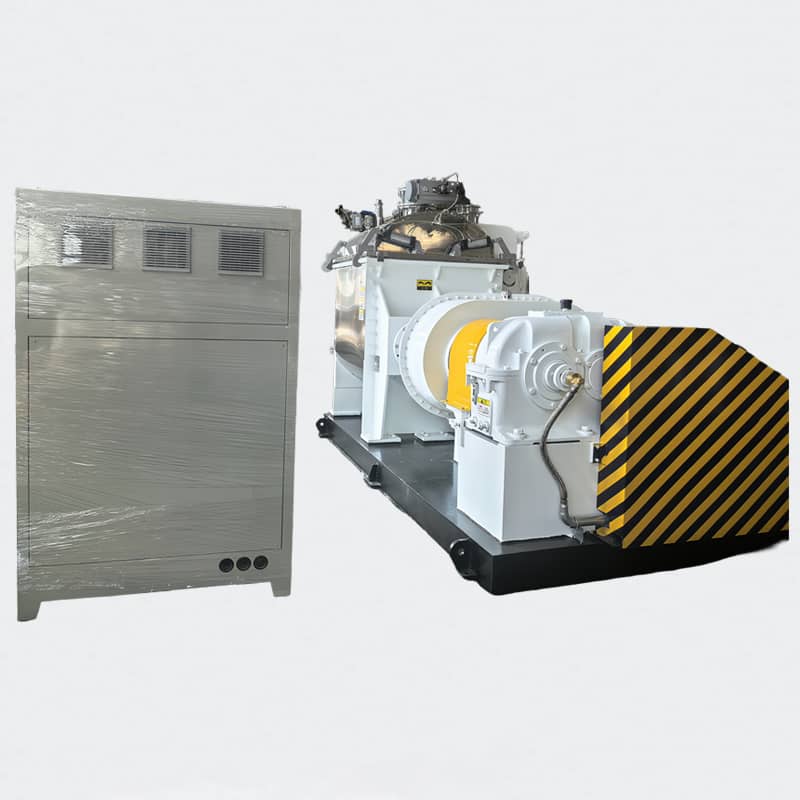

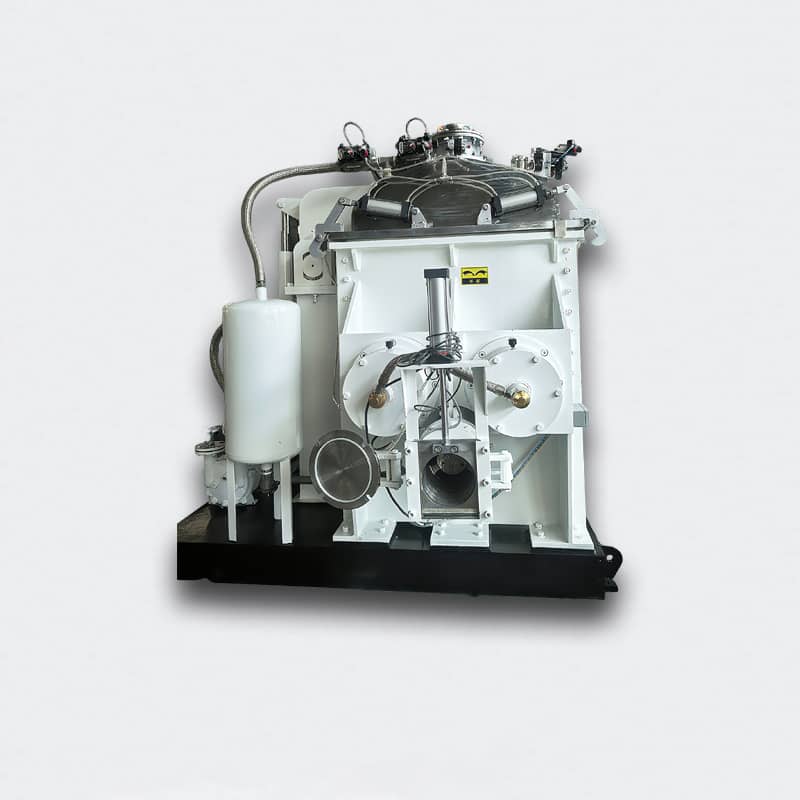

LINA Kneader-Screw Discharge & Forming Integrated Machine

One-step mixing–conveying–forming for high-viscoelastic materials

1. Product Positioning
Leveraging 30 years of kneader / internal mixer expertise and single-screw extrusion technology, LINA launches an all-in-one unit that integrates “kneader + screw discharge + forming die”. Within one sealed chamber it completes high-viscosity material kneading, devolatilization, steady-pressure conveying and continuous forming, eliminating the pain points of “multiple machines, repeated transfers, contamination and high loss”.
2. Core Structure & Workflow
  1. Top — Vertical Kneader
    • Double “Σ” or Z blades, high-torque hardened reducer, 5–40 rpm VFD
    • All wetted parts SUS304/SUS316L mirror-polished
    • Jacket/half-pipe heating, PID ±2 °C accuracy
    • Vacuum/nitrogen ports for degassing & drying
  2. Middle — Hydraulic Gate + Forced Feeding
    After kneading, the hydraulic gate opens instantly; blades rotate slowly to push material into twin-screw forced-feeding section, eliminating bridging and back-flow.
  3. Bottom — Single-Screw Extrusion & Forming
    • Φ45–150 mm barrier screw, alloy steel + nitrided/bimetallic sleeve
    • Multi-zone barrel temp, gear pump for stable pressure (±1 %)
    • Quick-change die: rods, sheets, profiles, films
    • Optional hot-cut air cooling, water strand, calender or lamination line
  4. Overall Control
    Siemens PLC + 10″ HMI, 100 recipes; full-line linkage, one-button start/stop, 4G remote module option.
3. Key Parameters (Typical LN-NK150)
Kneading Volume150 L (working 100 L)
Kneader Motor55 kW VFD
Extruder ScrewΦ120 mm, L/D 12:1, 75 kW main motor
Output400–600 kg/h silicone rubber / 300–500 kg/h masterbatch
Footprint / Weight5 m×2.2 m×3.5 m / ~8.5 t
4. Applicable Materials
  • Highly-filled silicone, FKM, HNBR, ACM
  • Engineering-plastic masterbatch, conductive & flame-retardant compounds
  • High-viscosity adhesives, gum base, food-grade gelatin
  • Medical TPE/TPU tubing, CIM/MIM ceramic feedstock
5. Customer Benefits
  1. Process shortened 30–50 %, labor reduced 1–2 persons/shift
  2. Zero transfer exposure, material loss down 2–3 %
  3. Vacuum devolatilization + low-temp extrusion, bubble-free, no yellowing
  4. Modular design—swap die/cutter only for rapid product changeover
  5. CE/UL certified, ready for export & premium audits
6. Optional Configurations
  • ATEX Zone 1/2 explosion-proof motors & panels
  • Online MFR or melt viscosity monitoring
  • Fully automatic gravimetric feeding (loss-in-weight / liquid pump)
  • Dual-layer insulation hood + low-noise fan ≤ 75 dB(A)
7. Service & Support
• 5 000 m² demo center in Dongguan – free sampling
• 24 h remote diagnosis + 48 h on-site nationwide
• Lifetime spare parts & process upgrades
