Lina Kai Refining Machine Model Range: 3 inches~28 inchesFor more detailed parameters, please contact the official customer service at 18033023380 (WeChat synchronization)

At the same time, it can also be customized according to customer needs:

Dual frequency conversion/dual motor/safety protection/automatic popping/hydraulic distance adjustment/

Automatic peeling/flipping/rewinding and laminating devices

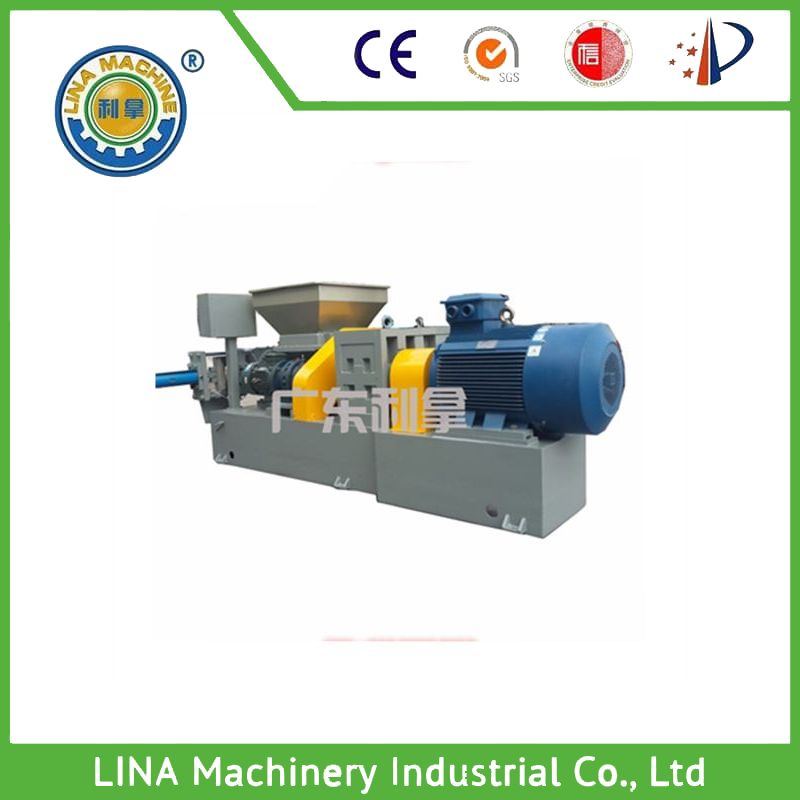

Application of Silicone Rubber Filter Machine

Filtering impurities in materials such as rubber and silicone rubber to ensure the stability of finished product quality is an essential equipment for the rubber industry, including silicone rubber filter machines.

Characteristics of Silicone Rubber Filter Machine

1. The gearbox is made of 20CrMnT steel with a hard tooth surface, which has low noise and is durable;
2. The screw is made of 38CrMoAIA steel that has undergone nitriding treatment, with a polished and smooth surface that is non stick to materials and has a long service life;
3. The feeding process of the rubber silicone filter adopts a double link automatic feeding hopper, which has fast feeding speed and uniform feeding. The filtering die head adopts a hydraulic lifting type, and the filtering plate also adopts a hydraulic top out type. The discharge adopts an automatic cutting program, which is convenient and fast, with a larger extrusion volume and easy operation.

Parameters of Silicone Rubber Filter Machine

Model: XJ-150

Screw diameter: Φ 150 (mm)
Length to diameter ratio: 6.5:1 (L/D)
Screw speed: -50r/min
Motor power: 45-55 (kw)
Production energy: about -800kg/h
Whole machine weight: 3800 (kg)
Dimensions (L × W × H): 3300 × 1580 × 1350 (mm)

Silicone rubber filter machine Lina after-sales service

1. Provide on-site installation guidance;

2. Responsible for on-site debugging of supplied equipment until it passes acceptance inspection;

3. Responsible for providing on-site operation and maintenance training to personnel of Party A;

4. The unit is guaranteed free of charge for one year under correct use, and the supply of spare parts is guaranteed for a long time;

5. Long term provision of free technical service consultation;

6. Within or outside the warranty period, the supplier shall provide clear solutions within 3 hours upon receiving notification of equipment malfunction from the purchaser; If the supplier's personnel are required to be on site, they should be responsible for maintenance within 48 hours domestically, and within 24 hours in the Pearl River Delta region. Foreign users can negotiate with foreign companies based on their visa status.

Kind reminder: For more requirements and functional options of the silicone rubber extrusion filter equipment, please consult.
