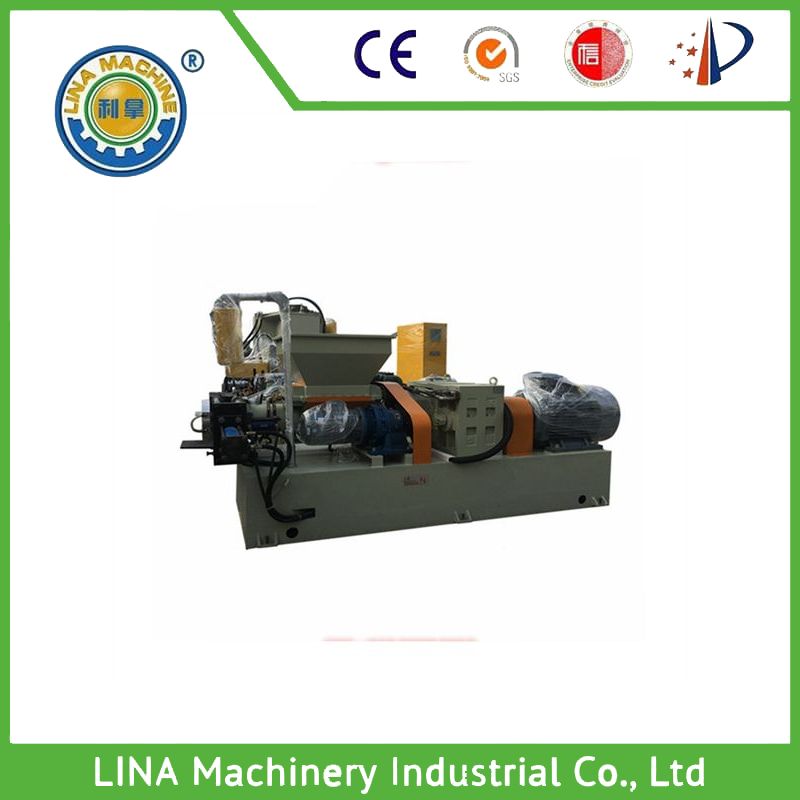

Application of rubber extrusion machine

The rubber extrusion machine is mainly used for the production of semi-finished rubber products after filtering impurities, with high production efficiency and cost savings; Ensure product quality stability, with features such as low failure rate, low noise, and durability.

Rubber extrusion machine parameters

Model: XJ-150
Screw diameter: Φ 150mm
Length to diameter ratio: 6.5:1 (L/D)
Screw speed: -45r/min
Motor power: 45~55kw
Production energy: about 800kg/h
Whole machine weight: 3800 kg
Dimensions (L × W × H): 3300 × 1580 × 1350mm

Characteristics of rubber extrusion machine

1. The gearbox is made of 20CrMnT steel with a hard tooth surface, which has low noise and is durable;

2. The screw is made of 38CrMoAIA steel that has undergone nitriding treatment, with a polished and smooth surface that is non stick to materials and has a long service life;

3. Equipped with a lubrication system consisting of independent lubricating oil pumps for forced lubrication of gears and bearings;

4. The machine base has sufficient strength and rigidity to withstand the torque and vibration loads of the extruder;

5. Equipped with hydraulic opening and closing filter screen, with automatic cutting rubber filter head;

6. The feeding process of the rubber filter sheet machine adopts a forced double roll feeding automatic feeding hopper, which has fast feeding speed and uniform feeding. The filter die head adopts a hydraulic lifting type, and the filter plate also adopts a hydraulic top out type. The discharge adopts an automatic cutting program, which is convenient and fast, with a larger extrusion volume and easy operation.

7. The main motor of the extruder adopts equipment with variable frequency stepless speed regulation. The frequency converter adopts high-quality domestic frequency converters, and the vector control suitable for rubber extruders is selected to achieve relatively high torque even at low speeds;

After sales service for rubber extrusion machine

1. Provide on-site installation guidance;

2. Responsible for on-site debugging of supplied equipment until it passes acceptance inspection;

3. Responsible for providing on-site operation and maintenance training to personnel of Party A;

4. The unit is guaranteed free of charge for one year under correct use, and the supply of spare parts is guaranteed for a long time;

5. Long term provision of free technical service consultation;

6. Within or outside the warranty period, the supplier shall provide clear solutions within 3 hours upon receiving notification of equipment malfunction from the purchaser; If the supplier's personnel are required to be on site, they should be responsible for maintenance within 48 hours in China, and within 5 hours in the Pearl River Delta. Foreign users can negotiate with foreign companies based on their visa status.

Kind reminder: For more requirements and functional options of rubber extrusion equipment, please consult.
