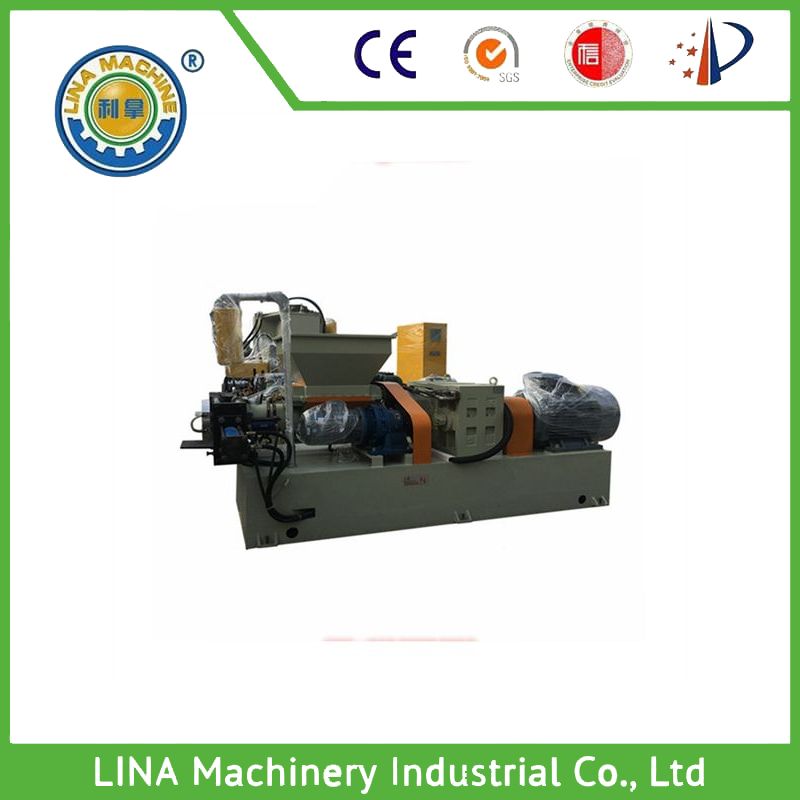

Characteristics of rubber extrusion filter machine

1. The gearbox is made of 20CrMnT steel with a hard tooth surface, which has low noise and is durable;

2. The screw is made of 38CrMoAIA steel that has undergone nitriding treatment, with a polished and smooth surface that is non stick to materials and has a long service life;

3. Equipped with a lubrication system consisting of independent lubricating oil pumps for forced lubrication of gears and bearings;

4. The machine base has sufficient strength and rigidity to withstand the torque and vibration loads of the extruder;

5. Equipped with hydraulic opening and closing filter screen, with automatic cutting rubber filter head;

6. The feeding process of the rubber filter sheet machine adopts a forced double roll feeding automatic feeding hopper, which has fast feeding speed and uniform feeding. The filter die head adopts a hydraulic lifting type, and the filter plate also adopts a hydraulic top out type. The discharge adopts an automatic cutting program, which is convenient and fast, with a larger extrusion volume and easy operation.

7. The main motor of the extruder adopts equipment with variable frequency stepless speed regulation. The frequency converter adopts high-quality domestic frequency converters, and the vector control suitable for rubber extruders is selected to achieve relatively high torque even at low speeds;

Application of rubber extrusion filter machine

Rubber extrusion filter is mainly used for rubber filtration, with the characteristics of low noise and durability.

Parameters of rubber extrusion filter machine

Model: XJ-200

Screw diameter: Φ 200 (mm)
Screw aspect ratio: 5.8:1 (L/D)
Screw speed: 10-48 (r/min)
Motor power: 55-75 (kw)
Production energy: 1000-1600 kg/h
Whole machine weight: 4300 (kg)
Dimensions (L × W × H): 3700 × 1850 × 1750 (mm)

After sales service of rubber extrusion filter machine

1. Provide on-site installation guidance;

2. Responsible for on-site debugging of supplied equipment until it passes acceptance inspection;

3. Responsible for providing on-site operation and maintenance training to personnel of Party A;

4. The unit is guaranteed free of charge for one year under correct use, and the supply of spare parts is guaranteed for a long time;

5. Long term provision of free technical service consultation;

6. Within or outside the warranty period, the supplier shall provide clear solutions within 3 hours upon receiving notification of equipment malfunction from the purchaser; If the supplier's personnel are required to be on site, they should be responsible for maintenance within 48 hours in China, and within 5 hours in the Pearl River Delta. Foreign users can negotiate with foreign companies based on their visa status.

Kind reminder: For more requirements and functional options configuration of rubber extrusion filter equipment, please consult.
