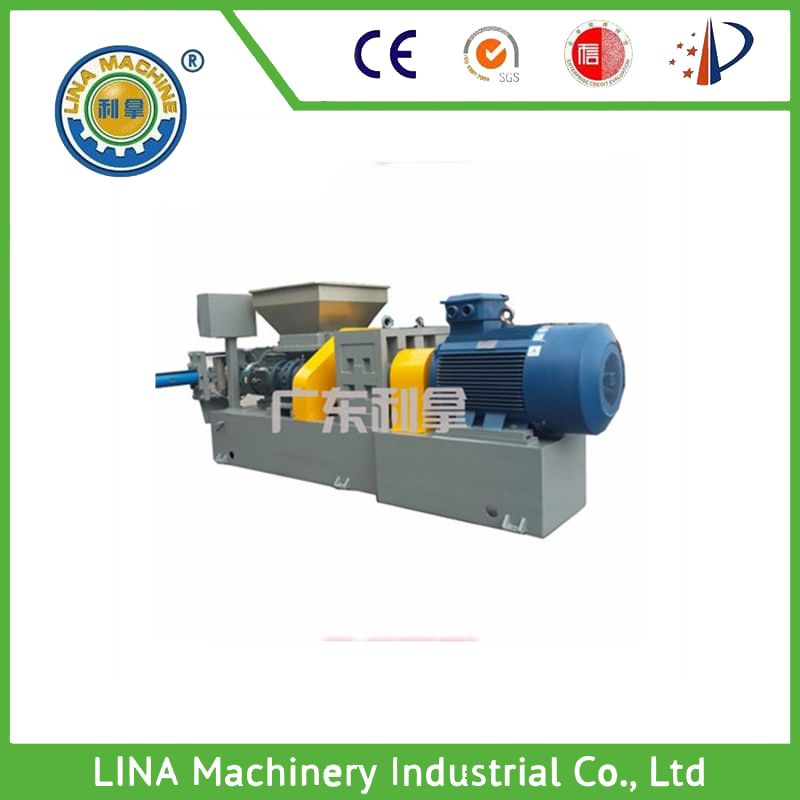

Introduction to forced feeding extrusion filter machine

The forced feeding extrusion filter is mainly used for filtering impurities in rubber to ensure product quality stability. It has the characteristics of low fault system, low noise, and durability.

Parameters of rubber silicone automatic feeding filter machine

Model: XJ-300

Screw diameter: Φ 300 (mm)

Screw length to diameter ratio: 6:1 (L/D)

Screw speed:~50 (r/min)

Motor power: 130 (kw)

Production energy: about 3500 (kg/h)

Whole machine weight: 10000 (kg)

Dimensions (L × W × H): 5350 × 2350 × 2100 (mm)

Characteristics of rubber silicone automatic feeding filter machine

1. The gearbox is made of 20CrMnT steel with a hard tooth surface, which has low noise and is durable;

2. The screw is made of 38CrMoAIA steel that has undergone nitriding treatment, with a polished and smooth surface that is non stick to materials and has a long service life;

3. Equipped with a lubrication system consisting of independent lubricating oil pumps for forced lubrication of gears and bearings;

4. The machine base has sufficient strength and rigidity to withstand the torque and vibration loads of the extruder;

5. Equipped with hydraulic opening and closing filter screen, with automatic cutting rubber filter head;

6. The feeding process of the rubber filter sheet machine adopts a forced double roll feeding automatic feeding hopper, which has fast feeding speed and uniform feeding. The filter die head adopts a hydraulic lifting type, and the filter plate also adopts a hydraulic top out type. The discharge adopts an automatic cutting program, which is convenient and fast, with a larger extrusion volume and easy operation.

7. The main motor of the extruder adopts equipment with variable frequency stepless speed regulation. The frequency converter adopts high-quality domestic frequency converters, and the vector control suitable for rubber extruders is selected to achieve relatively high torque even at low speeds;

After sales service of rubber silicone automatic feeding filter machine

1. Provide on-site installation guidance;

2. Responsible for on-site debugging of supplied equipment until it passes acceptance inspection;

3. Responsible for providing on-site operation and maintenance training to personnel of Party A;

4. The unit is guaranteed free of charge for one year under correct use, and the supply of spare parts is guaranteed for a long time;

5. Long term provision of free technical service consultation;

6. Within or outside the warranty period, the supplier shall provide clear solutions within 3 hours upon receiving notification of equipment malfunction from the purchaser; If the supplier's personnel are required to be on site, they should be responsible for maintenance within 48 hours in China, and within 5 hours in the Pearl River Delta. Foreign users can negotiate with foreign companies based on their visa status.
