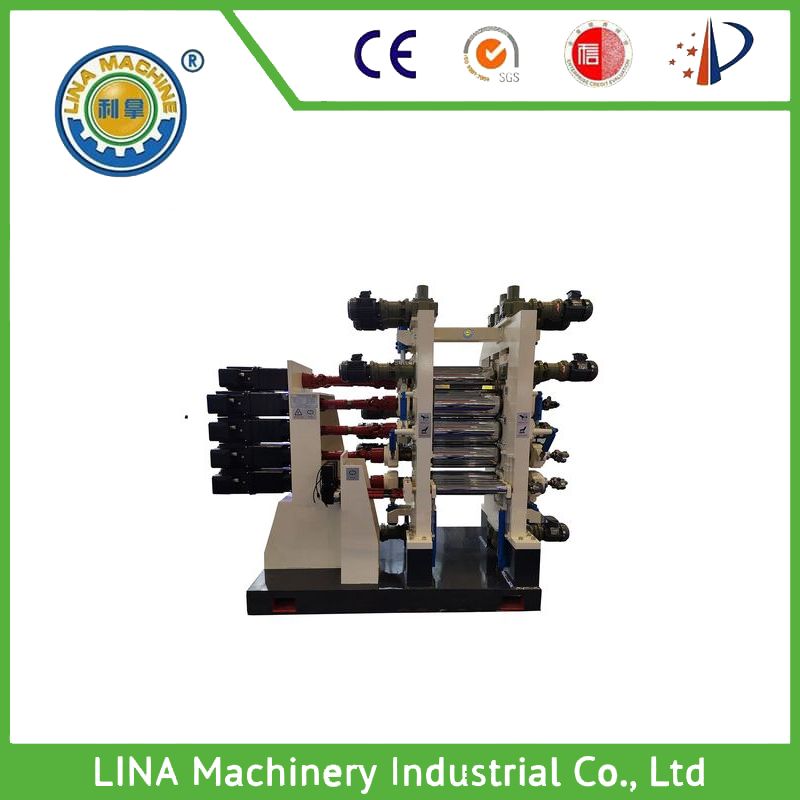

Nicknames: Film rolling machine, PVC rolling machine, PET rolling machine, PE film rolling machine, etc.

Application: The film rolling machine is suitable for PVC, PET, PP, PE and other film materials.

feature

Unwinding part: The integrated feeding base is easy to operate and occupies a small space.

Material release control system: using magnetic powder brakes combined with tension controllers to achieve automatic tension control and save labor.

Pressure Control System: A high-quality pressure control system that provides accurate rolling force to ensure product quality

Automatic correction system: using ultrasonic sensors in conjunction with a fully automatic correction controller to achieve automatic correction control, simple feeding operation, and avoid product rolling defects caused by uneven materials.

Main transmission part: Using servo motors combined with servo specific reducers as rolling power transmission, the roller speed is accurately controlled, which can adapt to efficient production of products with different thicknesses and ensure product quality.

Automatic meter counting control: using a photoelectric sensor automatic meter counting device to easily count production quantities.

Specifications

Mechanical manufacturing width: 0.4M/0.6M

Mechanical operating speed: 1-12.5M/min

Inner diameter of coiling tube core: 3 inches;

Film release accuracy error: ± 0.002
