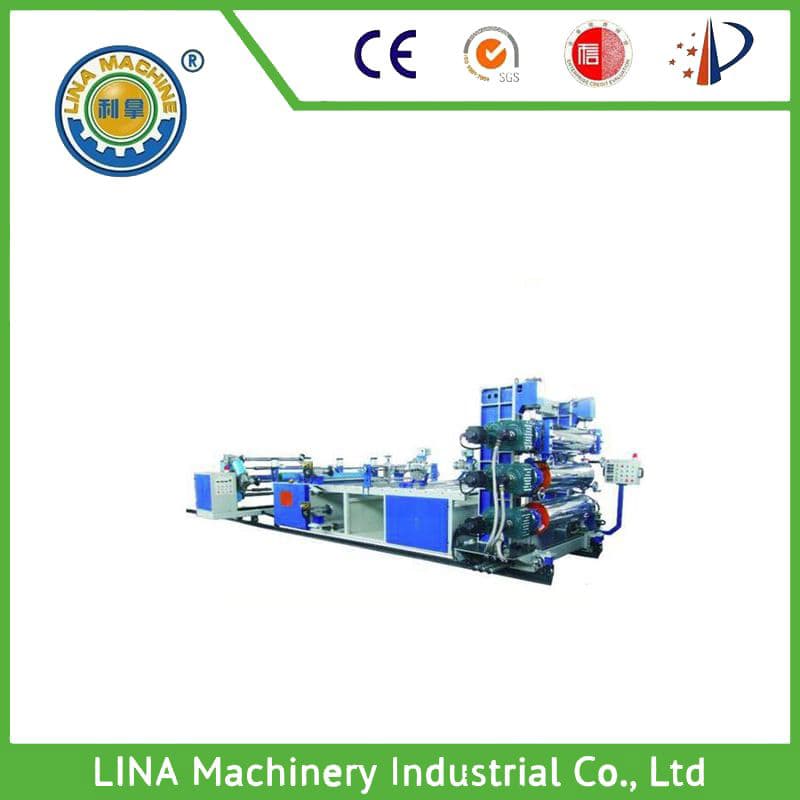

Alias: Thermal Conductive Silicone Rolling Machine, Thermal Conductive Silicone Rolling Production Line, Thermal Conductive Silicone Sheet Rolling Machine

Purpose: The thermal conductive silicone rolling machine production line is suitable for the production of various liquid and semi-solid thermal conductive silicone pads, phase change thermal conductive pads, thermal conductive silicone sheets, heat dissipation silicone sheets, thermal conductive insulation gaskets, flame-retardant thermal conductive insulation silicone tape and other thermal conductive silicone products

feature

Unwinding part: Four sets of substrate unwinding mechanisms can simultaneously complete the up and down winding of PET film, with multiple combinations of unwinding functions such as adding glass fiber cloth and thick size edges in the middle, to meet the different needs of customers.

Molding part: The coating and rolling combination design can meet the molding requirements of different viscosity formulas, and can efficiently produce from liquid like water to semi-solid like mud.

Sulfurization section: The tunnel type vulcanization box is equipped with high-temperature resistant PTFE belts, stainless steel electric heating tubes or far-infrared quartz heating tubes, and a multi-stage combination design to meet customers' various usage conditions. The quality insulation design meets customers' different process needs.

Cutting section: A professionally designed multifunctional slicer that completes various functions from peeling, bonding, trimming, to slicing or winding, saving space, reducing labor and turnover, and reducing yield.

Control System: A fully digital control system that displays all adjustable data such as tension, clearance, speed, and quantity in digital format, facilitating the establishment of SOP standardization and relying on the experience of operators.

Specifications

Mechanical manufacturing width: 0.63M/0.75M/0.9M/1.25M

Mechanical operating speed: 1-8M/Min

Inner diameter of coiling tube core: 3 inches;

Product thickness range: (0.2-12) mm

Thickness control accuracy: (0.2-1.0) ± 0.02mm, (1-12) ± 0.03mm

Sulfurization oven length: 11M/13.5M/16M/18.5M

Heating and vulcanization power: 36KW/45KW/54KW/63KW

Slice control accuracy: (100-1000) ± 0.2mm

Option

Raw material mixer: A dual planetary power mixer is used to efficiently disperse and mix liquid silicone gel, thermal powder, and other raw materials for products such as thermal conductive silicone pads, and vacuum treat them.

Raw material feeding machine: Adopting an oil pressure automatic pressing machine, it effectively avoids quality defects such as bubbles caused by manual feeding, saves manpower, and shortens loading and unloading time.

Roller heating system: using an aluminum plate heating table and an automatic roller heating system, specifically designed for preheating phase changing thermal conductive materials and heating requirements for material forming during the production process.

X-Y slicer: According to the customer's delivery size requirements, an X-Y type half cut/full cut slicer is configured to achieve cutting of any combination size of X-Y for customers. The minimum slicing size is 2 * 2mm.

Guangdong Lina focuses on the research and development of functional new material processes and equipment, providing comprehensive solutions from laboratory to mass production for new material manufacturing enterprises. If the above configuration cannot meet your needs, our company will develop processes and equipment for you free of charge until we provide you with a comprehensive solution for mass production.
