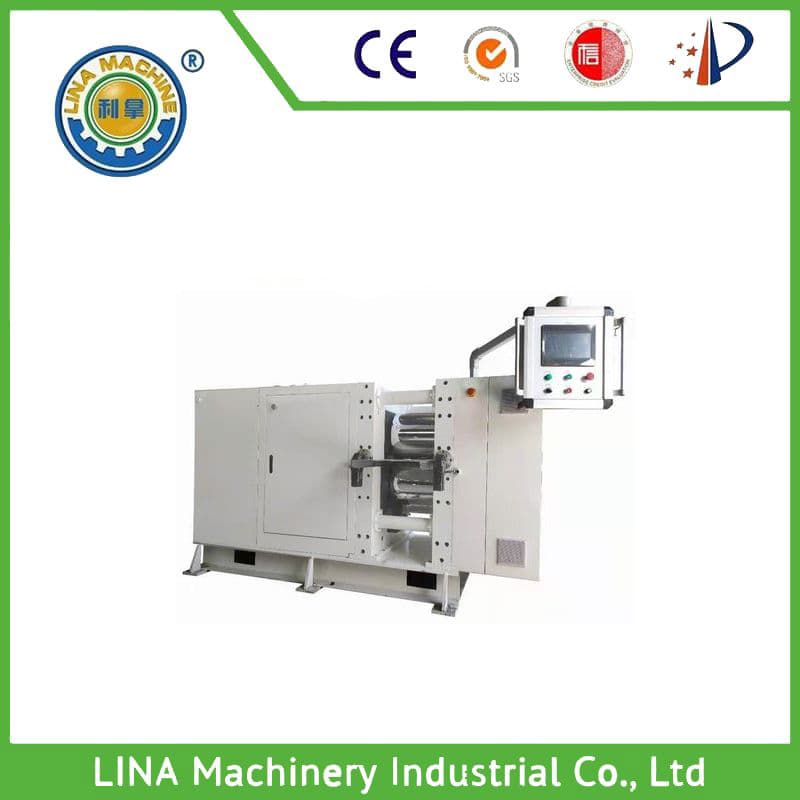

Alias: Absorbing material rolling machine, shielding material rolling machine, NFC ferrite sheet rolling machine

Purpose: The absorbing material rolling machine is a two roll absorbing material precision rolling machine with stable production and high precision. Suitable for shielding and absorbing materials such as NFC ferrite sheets, RFID soft magnetic separators, EMI/EMC absorbing materials, wireless charging soft magnetic separators, etc

feature

1. Fine design, small footprint, energy-saving and power-saving

2. All mechanical precision components and electrical components have undergone layers of quality inspection and control, meeting the technical acceptance standards

3. The integrated base and cast steel frame of the equipment have high strength, rigidity, and stability

4. The brand variable frequency motor controls the speed of each roller separately, achieving multi roller and multi speed ratio control to meet the diversified adjustment of production processes

5. The roller undergoes multiple special processing techniques and heat treatments to optimize the design of the hot runner, ensuring the accuracy and heating efficiency of the roller

6. Brand variable frequency motor+precision screw+imported precision digital grating ruler, effectively controlling the precise adjustment of roller distance and displaying roller distance in real time

7. Programmable control system+touch based human-machine interface, parameterized settings, portable operation, user-friendly design

8. A professional and comprehensive after-sales service team provides customers with more professional and efficient technical support for production, with a service response time of less than 24 hours

parameter

1. Mechanical speed: 0-10m/min

2. Roll specifications: φ 320 * 550mm

3. Maximum width of raw materials: 500mm

4. Raw material discharge diameter: φ 400mm

5. Finished product winding diameter: φ 400mm

6. Rolling width: 500mm

7. Equipment backup power: 11KW/50HZ

8. Heating method: External oil heating system

9. Heating power: 54KW/50HZ

10. Rolling material: alloy soft magnetic powder+resin polymer/ferrite magnetic powder+resin polymer

11. Film release accuracy: (0.10-2.0) ± 0.01mm

Guangdong Lina focuses on the research and development of functional new material processes and equipment, providing comprehensive solutions from laboratory to mass production for new material manufacturing enterprises. If the above configuration cannot meet your needs, our company will develop processes and equipment for you free of charge until we provide you with a comprehensive solution for mass production.
