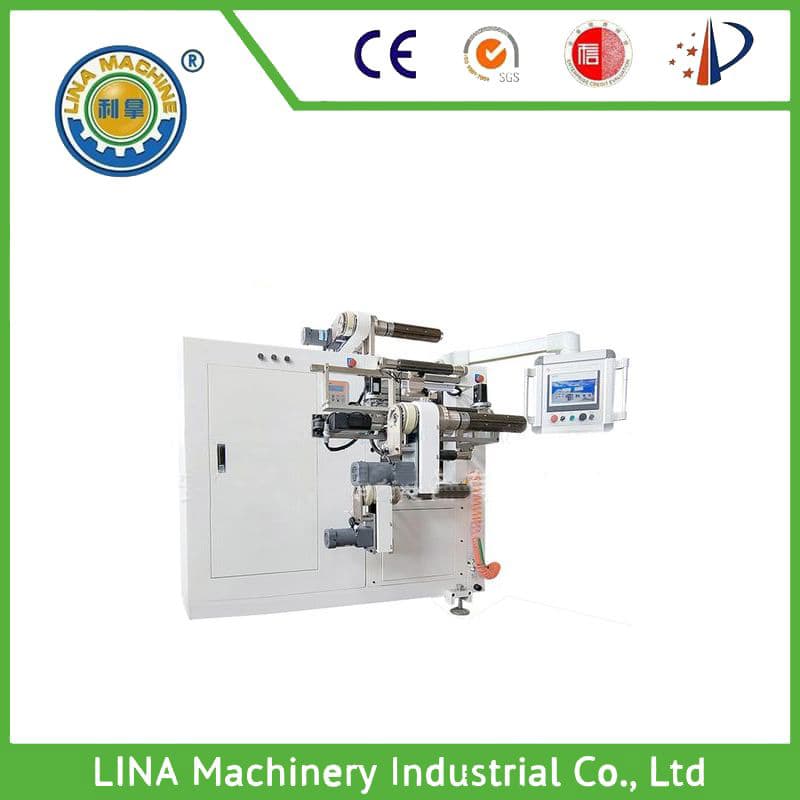

Alias: PTFE rolling machine, PTFE rolling machine, PTFE directional rolling machine.

Purpose: PTFE rolling machine is suitable for turning PTFE film semi directional, directional rolling, and PTFE film rolling

feature

Unwinding part: The unwinding reel adopts digital automatic tension control, real-time adjustment control, stable and efficient production

Rolling section: The core rolling mill adopts a special hot runner design made of high alloy steel, which has high heating efficiency and more stable product quality

Roll up section: The roll up bar adopts a branded variable frequency motor and digital automatic tension control, combined with a novel roll up smoothing device, to improve product quality and market demand

Control system: Independent isolated control box, fully digital control system, all adjustable data such as tension, clearance, speed, quantity, etc. are displayed digitally, which facilitates the establishment of SOP standardization and relies on the experience of operators.

Specifications

Mechanical manufacturing width: 0.3M/0.45M/1.0M

Mechanical operating speed: 1-15M/Min

Inner diameter of coiled tube core: 3 inches;

Product thickness range: (0.015-0.15) mm

Thickness control accuracy: (0.015-0.05) ± 0.002mm

Thickness control accuracy: (0.05-0.15) ± 0.003mm

Roll heating power: 27KW/45KW

Option

Optical online thickness gauge: The online monitoring system can help operators timely understand product quality,

Precision slitting machine: suitable for the production of PTFE film oriented fluoropolymer, with a minimum slitting width of 2.0mm.

Guangdong Lina focuses on the research and development of functional new material processes and equipment, providing comprehensive solutions from laboratory to mass production for new material manufacturing enterprises. If the above configuration cannot meet your needs, our company will develop processes and equipment for you free of charge until we provide you with a comprehensive solution for mass production.
