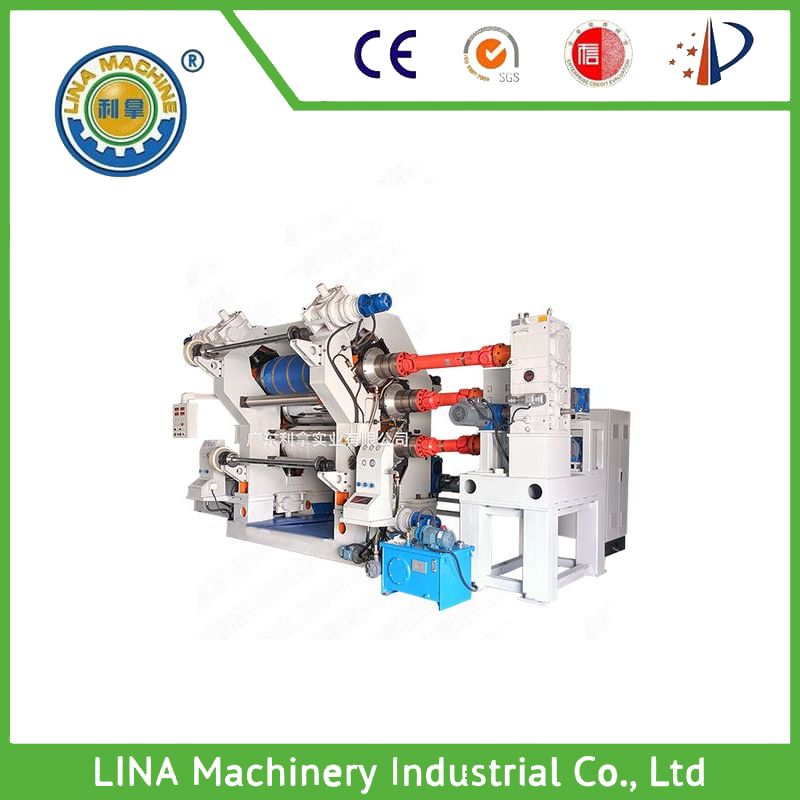

Alias: Graphite rolling machine, graphite film rolling machine, artificial graphite rolling machine, synthetic graphite rolling machine, heat dissipating graphite film rolling machine.

Purpose: The graphite rolling machine is suitable for precision rolling of thin film materials such as graphite film, graphite sheet, synthetic graphite, natural graphite, absorbing materials, PVC/PET, etc.

feature

Unwinding part: The integrated feeding base is easy to operate and occupies a small space.

Material release control system: using magnetic powder brakes combined with tension controllers to achieve automatic tension control and save labor.

Automatic correction system: using ultrasonic sensors in conjunction with a fully automatic correction controller to achieve automatic correction control, simple feeding operation, and avoid product rolling defects caused by uneven materials.

Main transmission part: Using servo motors combined with servo specific reducers as rolling power transmission, the roller speed is accurately controlled, which can adapt to efficient production of products with different thicknesses and ensure product quality.

Automatic meter counting control: using a photoelectric sensor automatic meter counting device to easily count production quantities.

Specifications

Mechanical manufacturing width: 0.4M/0.6M

Mechanical operating speed: 1-12M/Min

Inner diameter of coiling tube core: 3 inches;

Film release accuracy error: ± 0.002

For more technical parameters, please feel free to consult Lina customer service.

Option

Mechanical arm automatic film placing device: Adopting a dual axis mechanical arm automatic film taking and placing device, ensuring accurate and error free film placement spacing, effectively avoiding spacing errors caused by human operation during manual film placement, and improving film placement efficiency.

Guangdong Lina focuses on the research and development of functional new material processes and equipment, providing comprehensive solutions from laboratory to mass production for new material manufacturing enterprises. If the above configuration cannot meet your needs, our company will develop processes and equipment for you free of charge until we provide you with a comprehensive solution for mass production.
