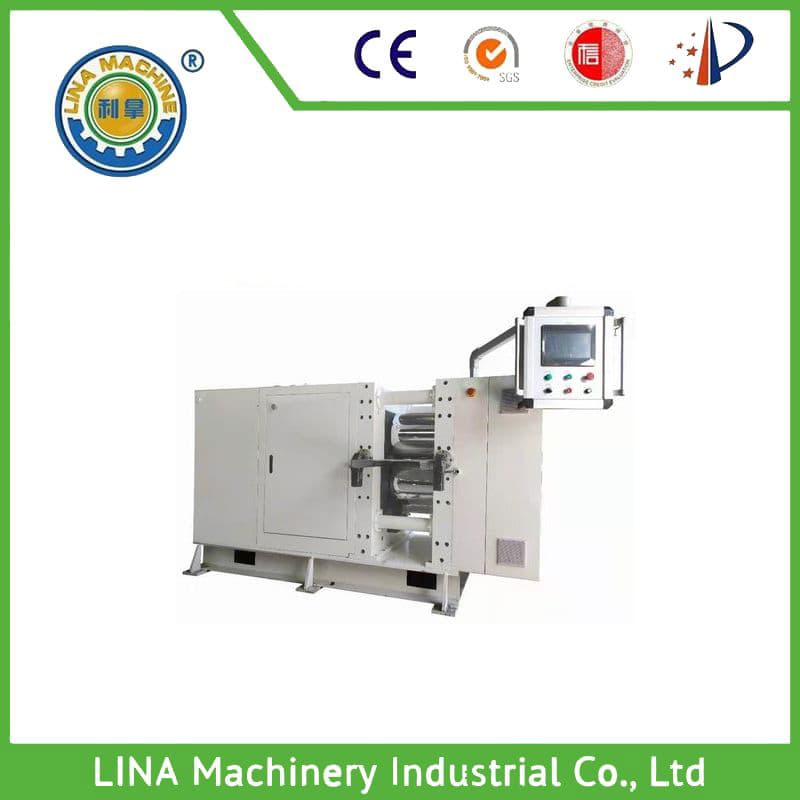

The precision rolling machine for shielding and absorbing materials is suitable for the precise coating production of RFID anti metal tags, wireless charging, magnetic control boards, NFC mobile payments, large integrated circuits, communication cables and other shielding and absorbing materials in the fields of antenna shaped products, consumer electronics and other products.

feature

1. Fine design, small footprint, energy-saving and power-saving

2. All mechanical precision components and electrical components have undergone layers of quality inspection and control, meeting the technical acceptance standards

3. The integrated base and cast steel frame of the equipment have high strength, rigidity, and stability

4. The brand variable frequency motor controls the speed of each roller separately, achieving multi roller and multi speed ratio control to meet the diversified adjustment of production processes

5. The roller undergoes multiple special processing techniques and heat treatments to optimize the design of the hot runner, ensuring the accuracy and heating efficiency of the roller

6. Brand variable frequency motor+precision screw+imported precision digital grating ruler, effectively controlling the precise adjustment of roller distance and displaying roller distance in real time

7. Programmable control system+touch based human-machine interface, parameterized settings, portable operation, user-friendly design

parameter

1. Mechanical speed: 0-10m/min

2. Roll specifications: φ 320 * 550mm

3. Maximum width of raw materials: 500mm

4. Raw material discharge diameter: φ 400mm

5. Finished product winding diameter: φ 400mm

6. Rolling width: 500mm

7. Equipment backup power: 11KW/50HZ

8. Heating method: External oil heating system

9. Heating power: 54KW/50HZ

10. Rolling material: alloy soft magnetic powder+resin polymer/ferrite magnetic powder+resin polymer

11. Film release accuracy: (0.10-2.0) ± 0.01mm
