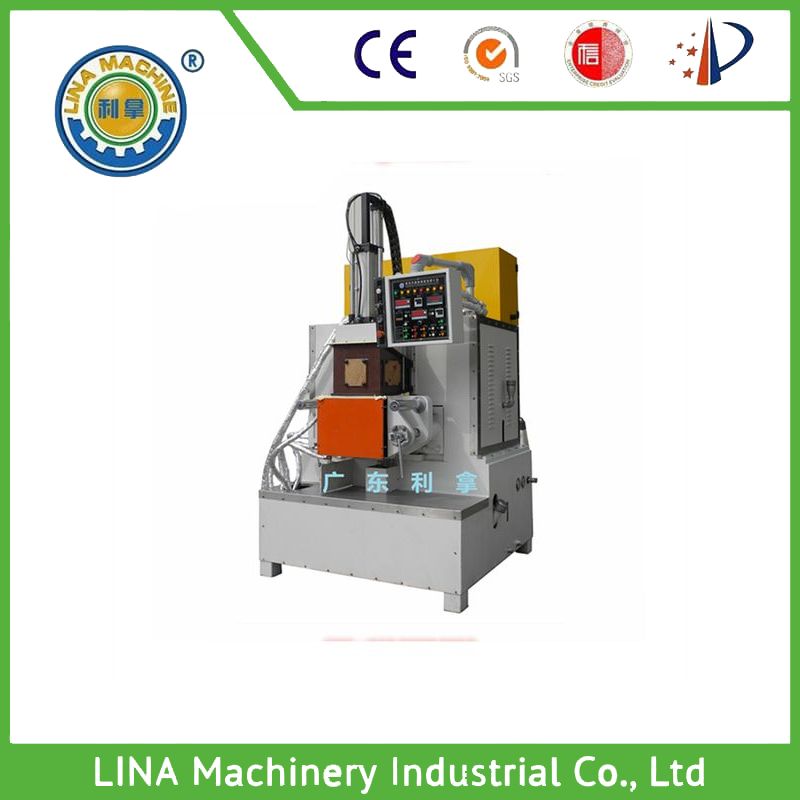

Technical characteristics of Lina zirconia internal mixer

1. Zirconia internal mixer has high production efficiency, uniform material dispersion, excellent quality, no pollution to the environment, and convenient material replacement and color cleaning;

2. The mixing chamber, rotor, pressure weight and other components all adopt a jacket type structure, which can be heated or cooled by introducing media, steam, thermal oil, water to meet the process requirements of various cable materials. The processed materials have excellent and stable quality;

3. The spiral angle and working length of the rotor ribs are designed reasonably, and the peak and end face of the rotor ribs are made of wear-resistant hard alloy by welding. The surfaces of the mixing chamber, rotor, and pressure weight that directly contact the material are polished and plated with hard chromium, which is bright, wear-resistant, and corrosion-resistant;

4. The joint between the upper opening of the mixing chamber and the suspended wall of the frame is designed with a secondary corner sealing structure, which has good sealing and dustproof effect. The rotor end face adopts a contact external pressure non lubricated sealing structure, which is wear-resistant and durable;

5. The mixing shaft adopts a dry mechanical shaft seal for leakage prevention, and the mixing tank is a tilting type, making cleaning and color change simple and easy. This sealed mixing tank not only ensures the mixing of goods, but also prevents environmental pollution, has a low failure rate, is sturdy and durable, easy to operate and maintain, and saves electricity;

6. The rotor page is made of imported alloy steel with welding, high-precision polishing, carburizing, and surface hard chrome plating treatment to ensure wear resistance and durability It is specifically designed for materials with strong wear resistance such as low smoke and halogen-free mixing, wires and cables;

7. The reverse gear reducer adopts a new type of planetary gear, which can save more than 1/4 of the volume and weight compared to other specifications of reducers. Each gear is heat-treated and ground to reduce friction loss during operation, and the same load in different directions cannot be achieved by traditional gearboxes;

8. The gear system of this machine's gearbox is made of high-grade chrome and special steel, and is precision machined by advanced units imported from West Germany. It has high accuracy, excellent assembly quality, is not easily worn or broken, has transmission efficiency, low noise, extremely low failure rate, and is energy-saving;

9. The mixing tank of this machine is made of advanced special steel, and the surface is treated with wear-resistant steel. The surface is electroplated with hard chromium, which has excellent wear resistance and a lifespan 1-2 times longer than traditional ones. The mixing tank is divided into tilting and lifting types, and the mixing shaft adopts a dry mechanical shaft seal to prevent leakage, making cleaning and color change simple and environmentally friendly;

10. The mixing tank is tiltable, and the mixing shaft adopts a dry mechanical shaft seal to prevent leakage, making cleaning and color change easy and convenient; This sealed mixing tank not only ensures the quality of the mixture, but also prevents environmental pollution;

11. The machine is sturdy and durable, with a low failure rate, easy installation, operation, and maintenance, and saves electricity.
