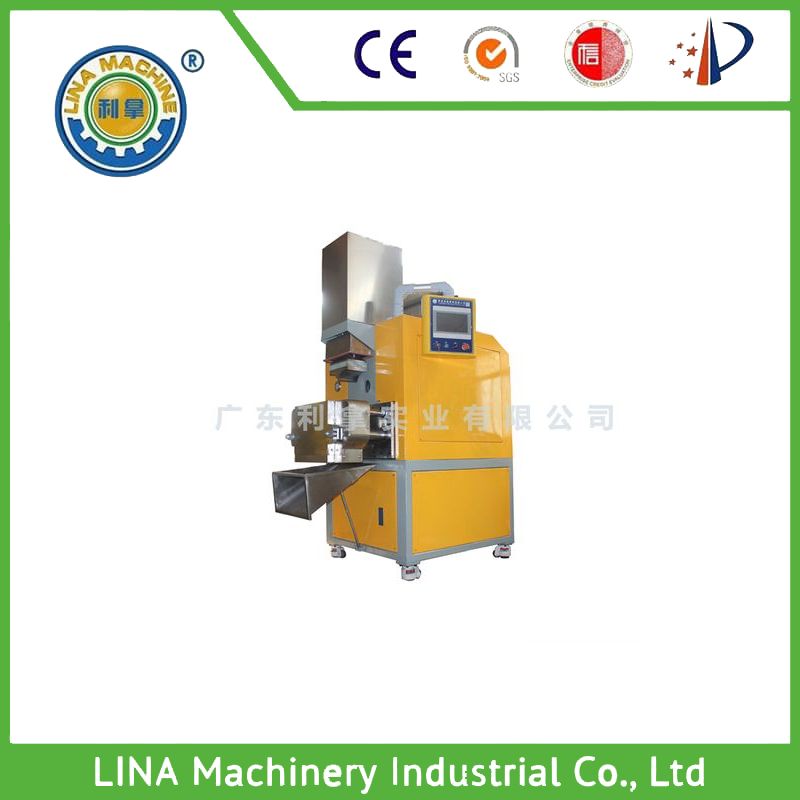

Lina's first vacuum mixing machine has been developed, targeting expensive materials that are toxic gases and cannot come into contact with oxygen. The vacuum mixing machine has shown great skills!

·The powder metallurgy vacuum mixing machine adopts the "M-W" pressurized and casting mixing tank, which is not only sturdy and wear-resistant, but also ensures that the material is uniformly mixed and the physical properties change to achieve the same mixing effect as before. The anti leakage powder device adopts a secondary corner design, which can greatly improve the anti leakage powder function Built in dust collector, convenient and fast dust recovery;

·The combination of automatic temperature control system and time control system in powder metallurgy vacuum mixing machine makes its operation precise, simple and easy to understand. It can quickly switch between heating or cooling according to the set working temperature to ensure the quality of material mixing and dispersion effect and effective working rate;

·The powder metallurgy vacuum mixing machine can be divided into manual and automatic control according to the needs of the mixed material, and is easy to operate;

·The powder metallurgy vacuum mixing machine adopts a high-efficiency motor, which has excellent power transmission, energy saving, and long service life;

·The mixing tank of the powder metallurgy vacuum mixing machine is made of advanced special steel, and the surface is treated with wear-resistant steel and high-end wear-resistant materials, with excellent wear resistance and a lifespan 1-2 times longer than traditional methods. The mixing tank is a flip type, and the mixing shaft adopts a dry mechanical shaft seal to prevent leakage, making cleaning and color change simple and environmentally friendly;

·The rotor of the Lina powder metallurgy vacuum mixing machine consists of long and short edges, a rotor body, and a circulating cooling water channel on the rotor through cavity. One long edge and one short edge of the rotor form a set of edges, which are evenly distributed on the rotor body and extend in a spiral shape from the end of the rotor to the center of the rotor. The starting edge of the long edge is not connected to the end of the rotor, while the starting edge of the rectangular edge is connected to the end of the rotor. The rotor through type inner cavity wall and edge parts are processed with a rotary circulating cooling water channel. As a result, the axial force of the rotor reaches equilibrium during operation, generating less heat, achieving sufficient mixing, accelerating the distribution of the vulcanization system, increasing the filling coefficient, and significantly improving the cooling effect, thus improving the quality and efficiency of the mixed rubber; The design characteristics and functions of rotor blades (in terms of design structure, it is actually an ideal rubber and plastic industrial mixer rotor in the industry)

Reminder: Internal mixer: Flip type and open/close type (clutch type), equipmentCustomized according to customer requirements, please consult for more functional options and configurations.

Lina Powder Metallurgy Vacuum Mixing Machine Service Commitment

1. On site installation guidance;

2. Responsible for debugging and testing the supplied equipment, and delivering it after passing the inspection;

3. Long term provision of technical consulting services;

4. Provide instructions for the recipient to operate and guide;

5. Under the correct operation of the unit, a one-year warranty is provided, and the supply of spare parts is guaranteed for a long time;

6. Within or outside the warranty period, the supplier shall provide a clear solution within 3 hours upon receiving notification of equipment malfunction from the purchaser; If the supplier's personnel are needed, they will arrive for maintenance within 72 hours in China and 24 hours in the Pearl River Delta region (excluding travel time) Foreign users may negotiate with foreign merchants based on their visa status.

Kind reminder: This machine can choose PLC control program according to customer requirements.
