Guangdong Lina is chosen for the production line of the water cutting granulator. With nearly 20 years of experience as a manufacturer of water cutting granulator production lines, we have a processing base of 30000 square meters, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

Granulation process of water cutting granulator production line

Double cone feeder -150 single screw extruder - automatic filter screen changer (non-stop) - electromagnetic rapid insulation heater - start-up valve - underwater pellet cutter - dehydration separator - special vibrating screen for classification - finished pellet storage cylinder

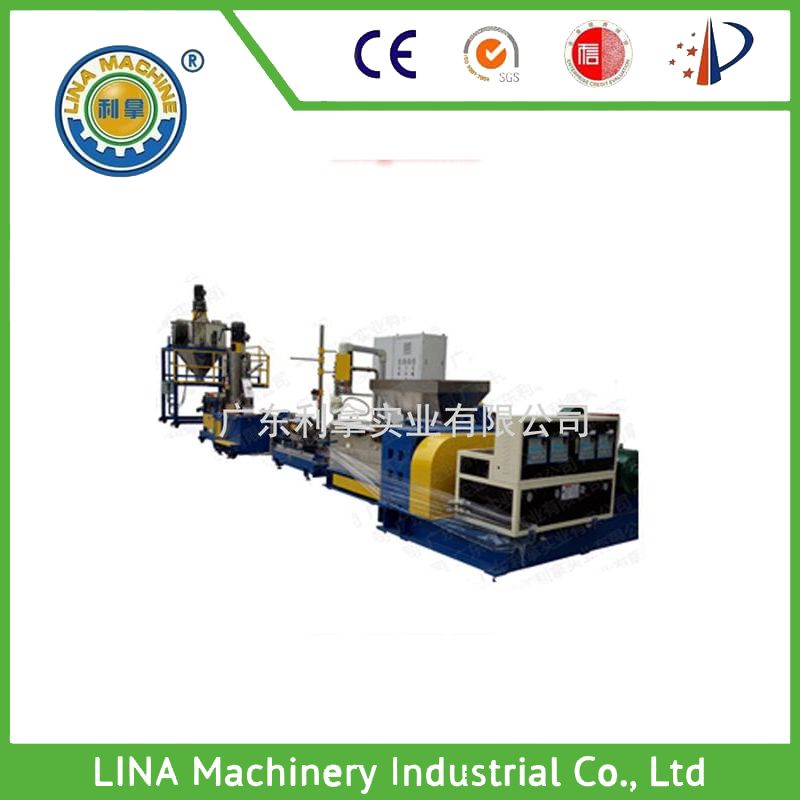

Introduction to the production line of water cutting granulator

1. Unit purpose: specifically designed for EVA water granulation;

2. Unit output is approximately 350-400/h (specific output depends on the user's formula, process, and physical properties);

3. Water requirements: Industrial soft water (deionized water) supply temperature ≤ 30 ℃, circulating water supply pressure:~0.40MPa;

4. Ground bearing requirements: The unit can be placed horizontally on a load-bearing ground (standard ground: 15CM thick hard high-quality concrete).

Basic characteristics of water cutting granulator production line

1. The barrel and screw are both integral structures made of high-quality nitride steel (38CrMoA1) and coated with hard chromium on the surface Nitriding HV950-1050 treatment, with a depth of 0.6-0.75mm and brittleness not exceeding level 11 The thread of the screw is designed for rubber extrusion and is hollow with water cooling. It has extremely low thermal deformation, high precision, large torque, and good wear resistance and corrosion resistance under high temperature and high pressure;

2. Both the barrel and screw are equipped with cooling devices, which are directly connected to the cooling system. Electromagnetic valves are connected in series to the barrel and each section of the machine in the cooling system. When the measured temperature exceeds the set value, the solenoid valve is quickly turned on to stop the water supply. At the same time, the corresponding heating circuit is connected to raise the temperature to the set value. This job is executed alternately, controlling the working temperature of each section within a small range of<1-3 ° C>. Its temperature control is accurate, the response is fast, and it can quickly reduce the working temperature in case of local overheating, effectively preventing color difference in finished particles;

3. The mold head adopts a manual screen changing device, and the honeycomb filter plate is easy to clean and quickly change the screen, and the mold head is not prone to material leakage.

Basic parameters of water cutting granulator production line

1. Cone shaped forced feeding machine system:

(1) Reduction motor power: 11kw. 380V/50Hz. The reduction ratio is 59:1. The communication speed controller adopts the "Dongyuan" frequency converter.

(2) Screw speed: 5-50 r/min

(3) Feeding rate approximately: 350-400kg/h

2. Screw:

(1) Screw form: Twin screw meshing type, opposite rotation

(2) Screw size approximately: taper of 250, large end diameter of 250mm, small end diameter of 30mm, strong and clean feeding

(3) Compared to traditional chain feeding in China, single axis transmission is more stable and uniform.

3. Cone barrel:

(1) Match with conical screw

(2) Single side clearance with screw 0.35mm

4. Host system:

(1) Length to diameter ratio: 12:1

(2) Screw diameter: 150mm

(3) Molding material diameter: 3.5 or 6.0 mm (can be adjusted according to user needs)

(4) Screw speed: 0-50 variable frequency r/min

(5) Main motor power: 75kW (AC) 380V/50Hz

(6) Cutting device power: 1.5KW

(7) Heater power (stainless steel): 10KW

(8) Dimensions approximately: L2650mm × W1100mm × H1250mm

5. Water cutting system model: LN-500

(1) Superhard alloy die head (imported from Belgium);

(2) Wear resistant alloy blade (imported from West Germany)

(3) Special mold head temperature control device

(4) Automatic heart adjustment cutting knife system

(5) Fully detachable cleaning dehydrator

(6) The surface of the equipment is made of stainless steel and other processes (all parts in contact with the material will never rust)

(7) Applicable materials: high viscosity copolymer elastomers (EVA, TPU, TPE, TPR), high viscosity hot melt adhesives, paraffin wax, etc. for granulation.

6. Granulator

(1) Granulator, used for TM500 underwater pelletizing system, divided into manual and automatic types

(2) Automatic knife adjustment,

(3) Automatic fine-tuning of the ball head to automatically compensate for the gap between the cutting blade and the mold surface

(4) The bearing adopts the Japanese NSK brand

(5) Siemens motor, power. 7.5 kW

(6) Working speed range: 300~3000rpm

(7) Spring damping device

(8) The mobile platform can move back and forth on the track, making it easy to operate and maintain

(The above parameters are basic parameters, please contact customer service for detailed parameters)
