The functional masterbatch granulator is selected from Guangdong Lina, a manufacturer of functional masterbatch granulators with nearly 20 years of experience. It has a processing base of 30000 square meters, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

Functional masterbatch granulator

The Lina functional masterbatch granulator comes in two types: single screw double wrist and single screw double cone. The screw is made of high-strength alloy steel casting, and the accessories are all equipped with imported brands. The temperature control effect is precise and the output is high.

Functional masterbatch granulator suitable products

Various functional masterbatch, high filling masterbatch, calcium carbonate masterbatch, talc powder masterbatch, titanium dioxide masterbatch, antimony trioxide masterbatch, flame retardant masterbatch, high temperature resistant masterbatch, carbon black masterbatch, etc.

Characteristics of Lina functional masterbatch granulator

The Lina Taiwan technology functional masterbatch granulation unit adopts an internal mixer with high dispersion connection and a single screw forced feeding granulator for granulation operation, solving the difficulties of feeding and insufficient dispersion of traditional twin-screw filling masterbatch. Suitable for: calcium carbonate granulation, talc powder granulation, carbon black granulation, high filling masterbatch granulation, titanium dioxide granulation, fuel blocking granulation, etc.

Characteristics of Lina functional masterbatch granulator

1. Integrating mixing, lifting, feeding, extrusion, air-cooled cutting, and air-cooled cooling, achieving automated continuous operation and high production efficiency;

2. The mixing, feeding, and extrusion sections can be heated using electric heating, steam heating, or hot oil circulation heating technology according to the customer's choice, based on their temperature control requirements;

3. The mixer adopts the technology of "four sided synchronous wear-resistant mixing chamber", which has high efficiency, low energy consumption, sufficient plasticization, and uniform dispersion;

4. The feeding device adopts the technology of our company's "conical twin-screw feeding device", which can assist in the mixing of mixed materials and forcibly feed the single screw extruder to improve granulation efficiency and quality;

5. The dual cone screw and single screw are both driven by AC frequency conversion technology, which can adapt to various process technology requirements;

6. The front of the machine head adopts a hydraulic quick screen changing device, which saves time, effort, and is environmentally friendly;

7. The granulator adopts a rotary blade and a fine adjustment device for air-cooled hot cutting of granules;

8. The cooling of granular materials is achieved through the use of cyclone separators for transportation and drum type cooling machines or disc type vibrating screens;

9. The electronic control system adopts PLC, visual interface and frequency conversion technology to achieve full automation control.

process flow

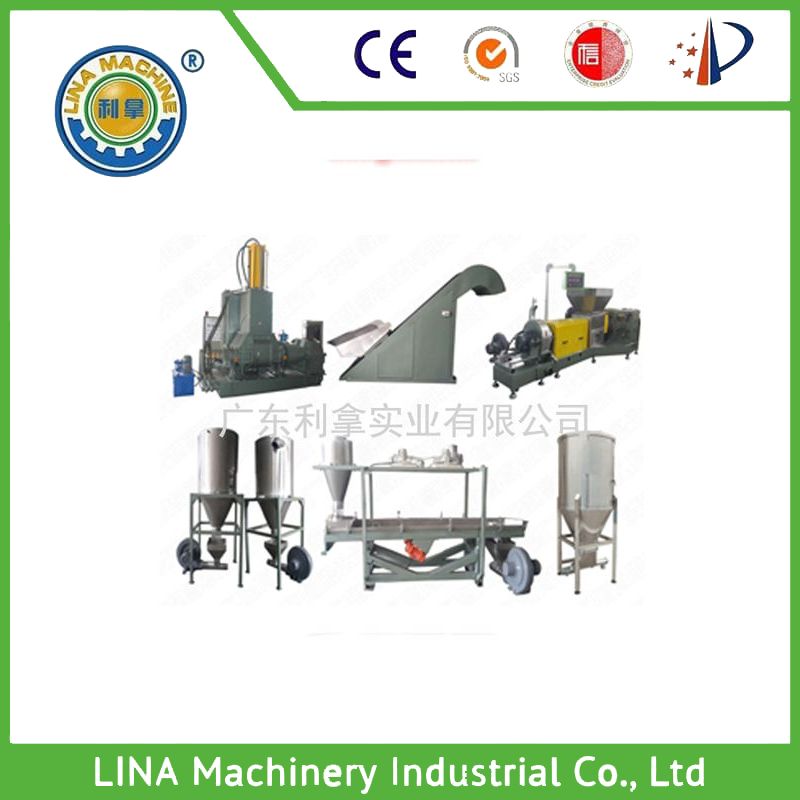

Internal mixer - bucket feeder - forced feeding granulator - die surface hot cutting granulator - centrifugal cyclone - vibrating feeder - discharge bucket

Kind reminder: The equipment can be customized according to customer technical requirements. For more models and functional options, please consult.
