The rubber and plastic blending granulation production line is selected from Guangdong Lina, a manufacturer of rubber and plastic blending granulation production lines with nearly 20 years of experience. It has a processing base of 30000 square meters, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

Introduction to rubber and plastic blending granulation production line

The rubber and plastic blending granulation unit adopts a high dispersion connection single screw forced feeding granulation machine with an internal mixer for granulation operation, which solves the problems of difficult feeding and insufficient dispersion of traditional granulators.

Characteristics of rubber and plastic blending granulation production line

1. Integrating mixing, lifting, feeding, extrusion, air-cooled cutting, and air-cooled cooling, achieving automated continuous operation and high production efficiency;

2. The mixing, feeding, and extrusion sections can be heated using electric heating, steam heating, or hot oil circulation heating technology according to the customer's choice, based on their temperature control requirements;

3. The mixer adopts the technology of "four sided synchronous wear-resistant mixing chamber", which has high efficiency, low energy consumption, sufficient plasticization, and uniform dispersion;

4. The feeding device adopts the technology of our company's "conical twin-screw feeding device", which can assist in the mixing of mixed materials and forcibly feed the single screw extruder to improve granulation efficiency and quality;

5. Both the double cone screw and single screw are driven by AC frequency conversion technology, which can adapt to various process technology requirements;

6. The front of the machine head adopts a hydraulic quick screen changing device, which saves time, effort, and is environmentally friendly;

7. The granulator adopts a rotary blade and a fine adjustment device for air-cooled hot cutting of granules;

8. The cooling of granular materials adopts cyclone separator transportation and drum type cooling machine or disc type vibrating screen;

9. The electronic control system adopts PLC, visual interface and frequency conversion technology to achieve full automation control.

Process flow of rubber and plastic blending granulation production line

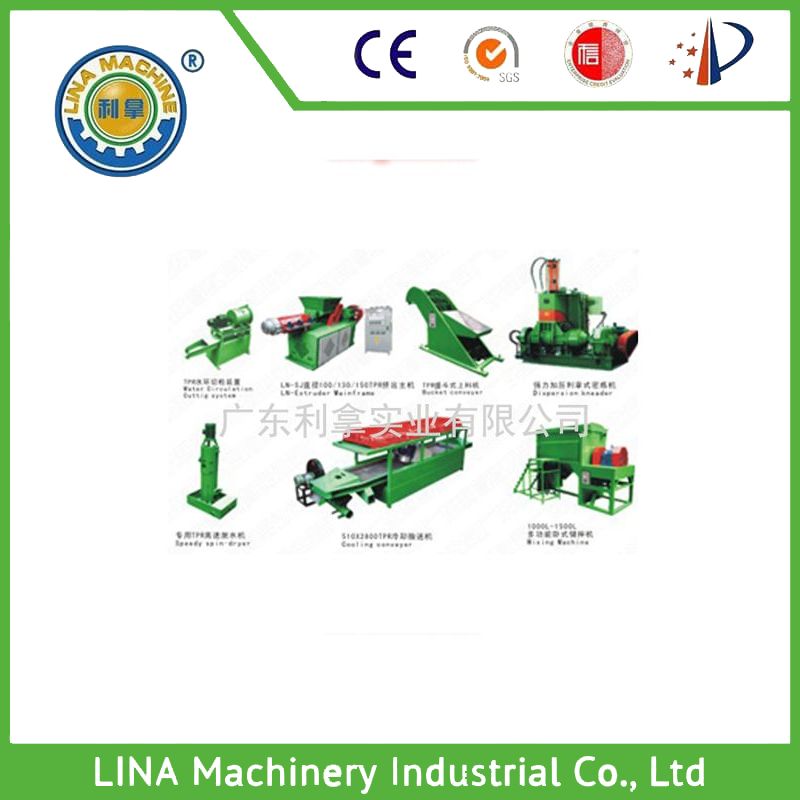

Internal mixer - bucket feeder - forced feeding granulator - die surface hot cutting granulator - centrifugal cyclone - vibrating feeder - discharge bucket
