For small double cone granulators, choose Guangdong Lina, a manufacturer of small double cone granulators with nearly 20 years of experience. It has a processing base of 30000 square meters, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

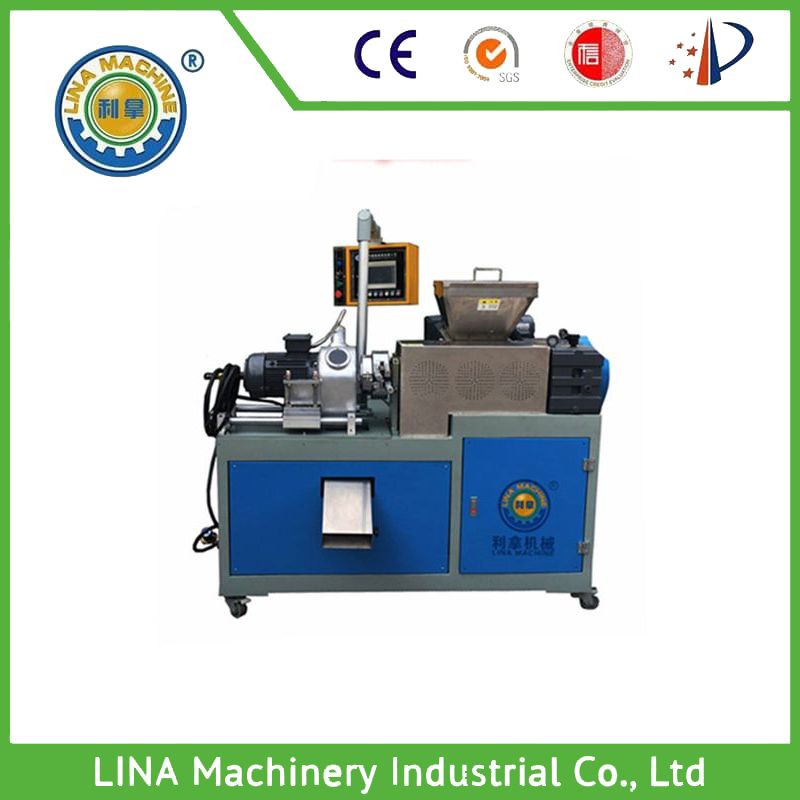

Basic Introduction to Small Double Cone Granulator

The important part of the double cone granulator adopts forced double cone feeding to feed the mixed metal clusters, reducing the need for additional crushing in traditional metal powder granulation and achieving automated continuous production. We specialize in granulating materials with high hardness, strength, and strong wear resistance, including stainless steel powder, iron powder, magnetic powder, zirconia, ceramic powder, and other materials.

Characteristics of Small Double Cone Granulator

The complete set of double cone rubber high-speed granulation equipment is equipped with a double cone forced feeding system placed at the upper part of the feed inlet of the barrel, which has strong feeding capacity and forces the process to pass throughinternal mixerThe agglomerated material after plasticization is forced into the screw groove and pushed forward under the rotation of the screw. As the material gradually enters the mold cavity, the internal pressure increases, forming a continuous and dense small cylindrical strip through the mouth mold for extrusion molding. The rear mold surface is equipped with a hot cut air-cooled granulation device. The main motor and cutting motor adopt variable frequency speed regulation, which can adjust the speed of the material and the uniformity of the particles. The barrel screws are made of high-quality alloy steel 38CrMoAlA, which has undergone nitriding treatment and has high hardness, wear resistance, and corrosion resistance. Matched with high-strength hard tooth surface reducers, the gears (shafts) are made of high-strength alloy steel that has been carburized, quenched, and ground at a constant temperature. The gears have high precision and hardness. Equipped with a thrust seat with high load-bearing capacity, featuring smooth transmission, low noise, and high efficiencyGranulatorThe intensity during the process can be adjusted. By adjusting the pressure of the rolling mill, controlling the strength of the finished product, and performing cyclic operations, continuous production can be achieved with high finished product output. No drying process, granulation at room temperature, one-time forming.

Main configuration of small double cone granulator

Main accessories: Taiwanese style configuration
Main motor: Siemens/Datong/Dongyuan
Gearbox: Guomao High Penetration Hard Tooth Surface Gearbox
Electrical brand: Omron/Schneider
Inverter brand: Delta or Dongyuan
Particle delivery power: Taiwan style transparent pump type
