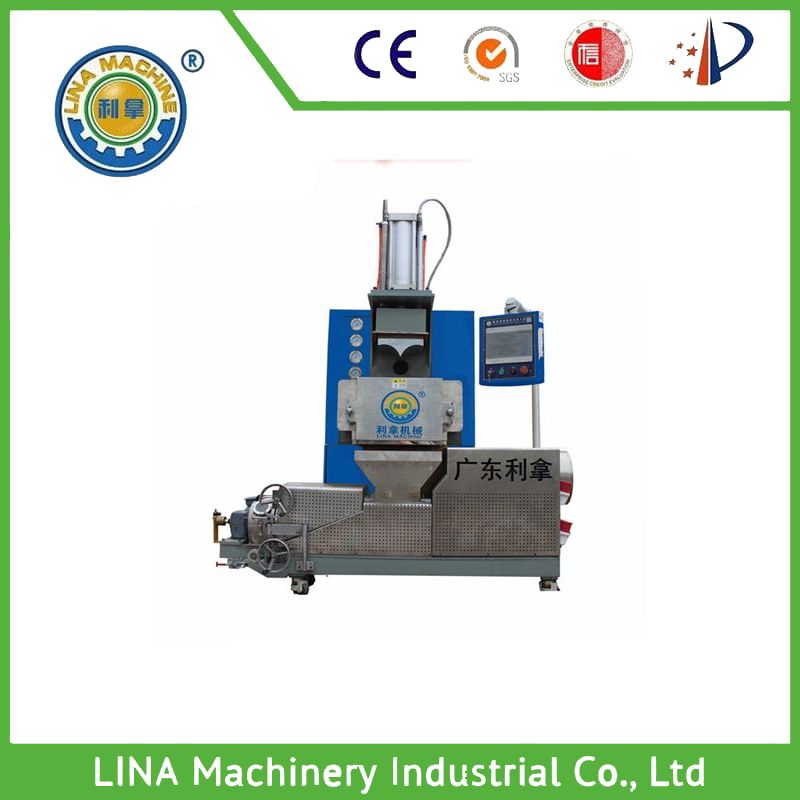

Choose Guangdong Lina for the high-temperature material granulator. With nearly 20 years of experience as a high-temperature material granulator manufacturer, we have a 30000 square meter processing base, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

Lina high-temperature material granulator is designed for special plastics, metals, ceramics and other high-temperature materials above 300 ℃. It is a senior modified granulator manufacturer with 20 years of industry experience, providing protection for your products.

High temperature material granulator is suitable for

Filling modification, such as filling CaCO3, Talc, TiO2, etc. with PE, PP, ABS, PC, EVA, etc;

Rubber and plastic blending modification, plastic alloy modification, such as PC+ABS, PA+EPDM, PBT+PET, PP+NBR, etc;

Color masterbatch modification, such as PE, PP, ABS, PC, EVA, PET, etc;

Flame retardant masterbatch modification, degradable plastic modification, anti-static masterbatch modification, antibacterial masterbatch modification, etc;

Fiberglass (carbon fiber) reinforcement modification, such as PA, PP, PC, ABS, PBT, POM+fiberglass;

Thermoplastic elastomer modification, such as TPR, TPE, TPV, TPU, etc;

缆料改性，PE、PP、EVA、PVC、XLPE；

Reactive extrusion modification, such as PA, PU, POM, PMMA, PC, etc;

Exhaust volatilization post-treatment modification, such as CPP, CPE, SBS, EPDM, SEBS, fluororubber, butadiene rubber, etc;

Powder coating modification, such as epoxy, polyester, hybrid, etc.

High temperature material granulator is suitable for application scope

High temperature material modified granulator is widely used in chemical, petrochemical, pharmaceutical, food, building materials, mining and metallurgy, environmental protection, printing and dyeing, metal, ceramic, rubber, plastic and other fields

Technical characteristics of high-temperature material granulator

1. This production line integrates mixing, conveying, feeding, and extruding materials. Realize automated continuous setting, high production efficiency, and good plasticizing and mixing effects. Compact structure, small footprint and space, suitable for flat installation. Mixing, feeding, and extrusion machines have their own heating and cooling systems;

2. Segmented closed-loop temperature control is implemented in the production process. According to the process requirements, the ability to control the temperature and feed is strong. Specially suitable for extruding bulk materials directly mixed by internal mixers;

3. The feeding mechanism adopts a propeller double turn type. Nitriding treatment;

4. The barrel screws are made of high-quality alloy steel 38CrMOA LA. High hardness, wear-resistant and corrosion-resistant Improve production efficiency;

5. The machine head adopts manual screen changing or fast non-stop automatic screen changing mechanism. Composed of multiple frequency converters;

6. The electronic control system adopts advanced PLC control technology. Enable multiple machines such as feeding, extrusion, and cutting to perform high-precision and wide range stepless speed regulation according to process requirements. And it has functions such as whole machine process interlocking, sound and light fault alarm control, etc., which are complete and reliable.

Process flow of high-temperature material granulator

1. Internal mixer: used for mixing, stirring, and pre forming granulation raw materials, with the purpose of thoroughly mixing the main and small materials evenly and plasticizing them into clusters;

2. Bucket feeder: used to transport the agglomerated rubber material mixed and plasticized by the mixer to the double arm feeder. Its main function is to feed the material to the single screw granulator;

3. Modified granulator: It is a granulation host that functions to disperse and push the mixed rubber material from the internal mixer to the cutting die for granulation after secondary dispersion. Due to the need to ensure the temperature of the rubber material during the pushing process, it is generally equipped with five temperature control zones to adjust the temperature of the rubber material and coordinate with the granulator for granulation and forming;

4. Granulator: connected to the die head of a single screw extruder, the high-speed rotating pelletizing blade driven by a motor is tightly attached to the die head for pelletizing. The cutter speed is adjustable and is used in conjunction with a variable frequency extruder to control the shape and yield of particles;

5. Cooling drum: The cooling drum is connected to the material receiving groove of the granulator through a transparent plastic pipe, and is pushed into the cooling drum by a strong fan. The wall of the cooling drum is designed as a jacket type that can be filled with water to reduce the temperature of the rubber material, and then sent into the vibrating screen through a transparent rubber hose connected to the strong fan;

6. Air cooled screening bed: The main function of the air cooled screening bed is to cool the rubber material again. After being cooled once by the cooling bucket, it is sent to the screening bed for secondary cooling by a strong fan. The cooling system of the screening bed is air-cooled, consisting of 6-8 small fans suspended above the screening bed;

7. Storage bucket: Its main function is to store plastic particles that have been granulated by the granulator and cooled by the granulator cooling system.

Advantage A: Extremely low thermal deformation, high precision, large torque, good wear resistance and corrosion resistance under high temperature and high pressure;

Advantage B: Both the barrel and the screw are equipped with cooling devices, which are directly connected to the cooling system. Electromagnetic valves are connected in series in each section of the barrel and the machine in the cooling system. When the measured temperature exceeds the set value, the electromagnetic valves are quickly turned on to stop the water supply, and the corresponding heating circuit is connected to raise the temperature to the set value. This job is executed alternately, controlling the working temperature of each section within a small range of<1-3 ° C>. Its temperature control is accurate, the response is fast, and it can quickly reduce the working temperature in case of local overheating, effectively preventing color difference in finished particles;

Advantage C: The mold head adopts a manual (automatic) screen changing device, and the honeycomb filter plate is easy to clean and quickly change the screen, and the mold head is not prone to material leakage.

After-sales Commitment

1. Provide on-site installation guidance; Responsible for on-site debugging and testing of supplied equipment until it passes acceptance inspection;

2. Responsible for providing on-site operation and maintenance training to personnel of Party A;

3. The correct use of the unit is covered by a one-year free warranty, and the supply of spare parts is guaranteed for a long time;

4. Long term provision of technical consulting services; Within and outside the warranty period, the supplier shall provide clear solutions within 3 hours after receiving notification of equipment failure from the purchaser. If the supplier needs to send personnel, they shall be responsible for on-site maintenance within 72 hours domestically, and the Pearl River Delta shall be in place within 24 hours. (Excluding transit time. Foreign users may agree with their visa or the security situation of the trading country or region, and with foreign merchants separately.)

Kind reminder: The device can be customized according to customer technical requirements. For more functional options and configurations, please consult.
