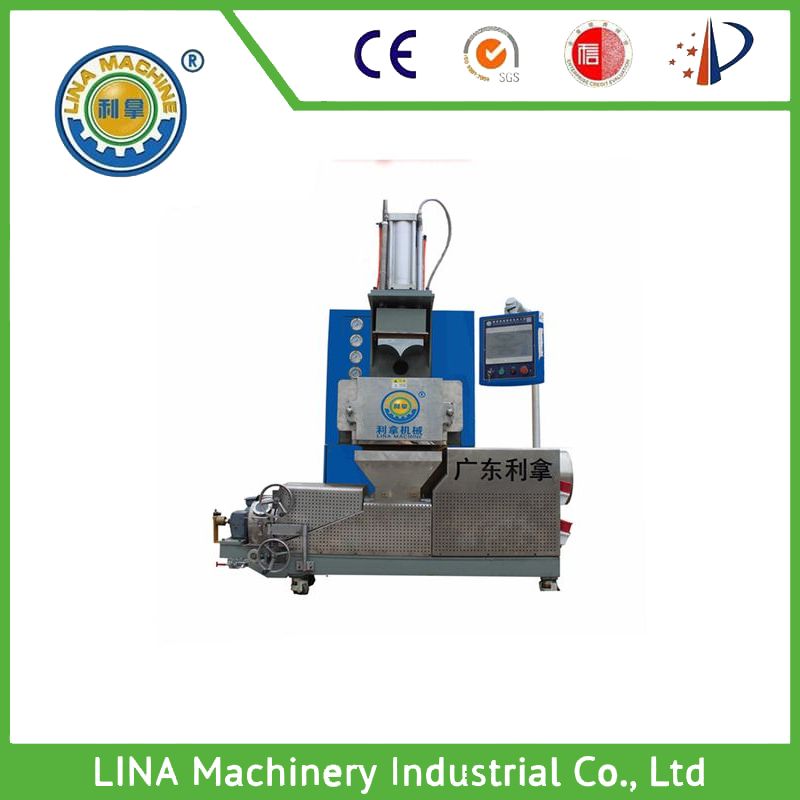

Choose Guangdong Lina for the multifunctional mixing and granulation integrated machine. With nearly 20 years of experience as a manufacturer of multifunctional mixing and granulation integrated machines, we have a processing base of 30000 square meters, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

Advantages of Lina multifunctional mixing and granulation integrated machine (the following technologies have obtained corresponding patent protection, and imitation will be investigated):

▪ Perfect combination of mixing and granulation, no need to move materials in the middle

▪ The length and smoothness of the granular material can be controlled

▪ Intelligent temperature control, high degree of automation

▪ Higher work efficiency and more stable performance

▪ Manual and automatic can be freely converted

▪ Servo control, easy to clean

▪ Equipped with dust recovery and exhaust emission devices

▪ Screw and barrel are wear-resistant and corrosion-resistant

▪ High thrust screw design, fast conveying speed

The unique design function of the Lina multifunctional compound mixing and granulation integrated machine

Designed for the MIM and CIM metal powder ceramic powder industries, the contact parts of the inner cavity materials are all sprayed with imported tungsten titanium, effectively improving the service life of the internal mixer and controlling the fatal troubles caused by material pollution.

Truly achieving the perfect combination of mixing and granulation, the equipment is controlled by PLC software, simplifying the process flow, making continuous production easy to control, occupying a small area of equipment, reducing manpower, lowering energy efficiency, and facilitating maintenance.

Multi functional mixing and granulation integrated machine parameters

Mixing capacity: 10L
Batch feeding amount: 30kg-80kg (exact output depends on the specific gravity and dispersion time of the material)
Internal mixing rotor speed: 27r/min-35r/min
Ratio of rotor speed before and after mixing: 1:1.27
Main motor power for mixing: 11KW
Internal mixing unloading motor power: 2.2KW
Main motor power for granulation: 7.5KW (adjustable speed and frequency)
Granulation feeding motor: 2.2KW (adjustable speed and frequency)
Particle cutting motor power: 0.75KW (adjustable speed and frequency)
Dust collection and exhaust fan power: 380W
Lighting power: 9W
Cooling method: air-cooled
Air compressor power: 2.2KW
Compressed air pressure: 0.5Mpa
Electric heating power: 18KW
Power supply: 380V/50HZ
Total power consumption: approximately 52KW
Particle diameter: Φ 3.2mm
Granulator speed: 0-180r/min
Screw: detachable
Granulation screw aspect ratio: 1:12
Total weight of equipment: 3200kg
Dimensions (length X width X height): 3200mm X1450mm X2800mm

After sales service of Lina multifunctional mixing and granulation integrated machine

1. Provide on-site installation guidance.

2. Responsible for on-site debugging and testing of supplied equipment until it passes acceptance.

3. Responsible for providing on-site operation and maintenance training to the personnel of Party A.

4. The unit guarantees long-term supply of spare parts.

5. Long term provision of technical consulting services.

6. Within and outside the warranty period, the supplier shall provide clear solutions within 3 hours after receiving notification of equipment failure from the purchaser. If the supplier needs to send personnel, they shall be responsible for on-site maintenance within 72 hours domestically, and the Pearl River Delta shall be in place within 24 hours. The buyer shall be responsible for the visa fees, travel expenses, airfare, accommodation expenses, etc. incurred during the on-site installation, commissioning, and maintenance period of foreign users (excluding transit time)

Kind reminder: The equipment can be customized according to customer technical requirements. For more models and functional options, please consult.
