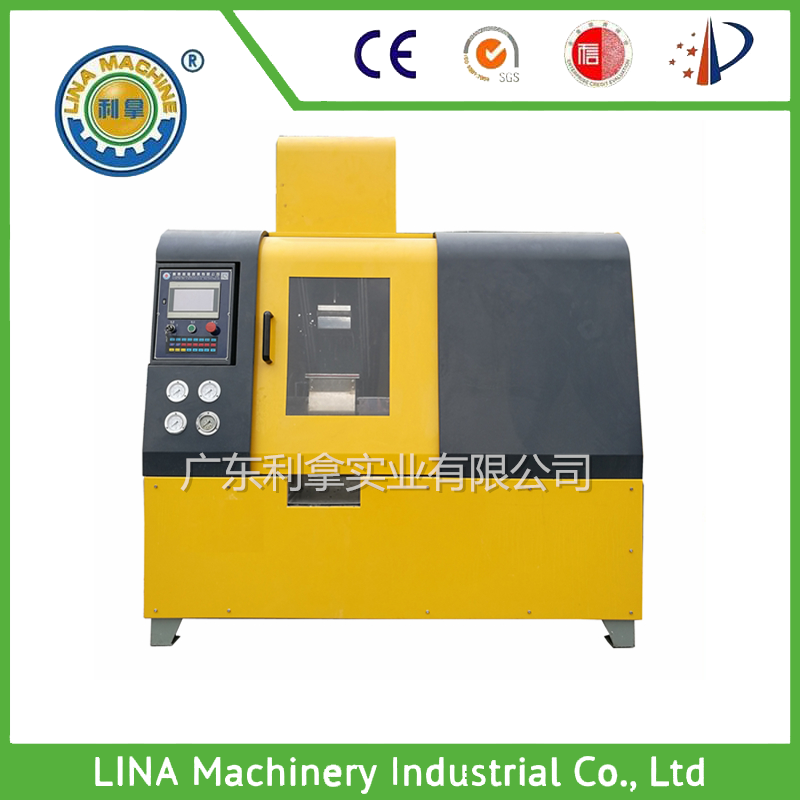

Usage of 1L mixer machine

Linacard1L internal mixer(1-liter internal mixer)suitforVarious rubber and plastic raw materialsSilicone gelMixing, dispersing, kneading, etc. in chemical raw materials such as engineering modified materialsandPlasticization and other purposesLinaThe 1L internal mixer is mainly used for experimental purposes in universities and research institutions.

The design of the mixing system has been improved and developed by technical personnel for many years. The gaps between the rotor and the mixing chamber, as well as the production of the rotor shaft and rotor shaft, are specifically designed for laboratory use. The high precision requirements enable formulators to more accurately grasp the changes and characteristics of materials. The new Lina 1L mixing machine adopts a visual design, which allows for real-time observation of the status of materials. After adopting a microcomputer control system, the time, temperature, and current curves during the material experiment can be stored and exported, which can be compared and studied after the experiment.

Application scope of 1L mixer

Linacard1L internal mixer(1-liter internal mixer)Widely used in EVA，PVC，TPR，PE，PP，PC，metal powder，Ceramic Powder，Functional masterbatch，rubber additive，Shoe materials，rubber tire，Sealing miscellaneous parts，electronic products，wire and cable，Raw materials for rubber and plastic products such as automotive products.

Technical characteristics of 1L internal mixer

Linacard1L internal mixer(1-liter internal mixer)Small footprint, energy-saving, safe, and goodoperationGood dispersion, low noise, long service life, extremely low maintenance frequency, built-in dust collector,All technology comes from Taiwan, with core components imported and purchased. LinaSmall mixerSelected by numerous domestic universities,It has signed contracts with Tsinghua University, the Chinese Academy of Sciences, South China University of Technology and many other well-known universities,At present, we have established long-term cooperative relationships with more than 30 universities across the country.

LinacardThe main function of the 1L mixer is to cooperate with laboratory sampling and research and development,Successfully signed clientsSouth China University of Technology, Xi'an University, Xi'an Jiaotong University, Harbin Institute of Technology, Shanghai University, Central South University, Xiamen University, Yueyang Baling Petrochemical, Beijing Yanshan Petrochemical, Zibo Qixiang Tengda Chemical, Tianjin Petrochemical, China Academy of Engineering Physics, Wuhan Wangrui Laboratory, Keteng Polymer and many other universities and research institutions.

Technical parameters of 1L internal mixer

Mixed capacity: ----------------------------1L

Motor power: -------------------------3.7KW

flippower：-----------------------0.75KW

Flip angle: ------------------------110 °

Rotor speed: ---------------------- Fixed speed (optional variable frequency adjustable)

Production capacity: approximately 0.6-3.0Kg/time

Cooling method: ------------------------- Water cooling

Heating method: ---------------------- Electric heating

Machine weight: approximately 900KG

Size: Approximately 1900mm * 1100mm * 2100mm

Kind Reminder:This machine can be programmed with PLC according to customer requirements. For more options and configurations, please consult.
