For small laboratory mixers, choose Guangdong Lina. With nearly 20 years of experience as a manufacturer of small laboratory mixers, we have a 30000 square meter processing base, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

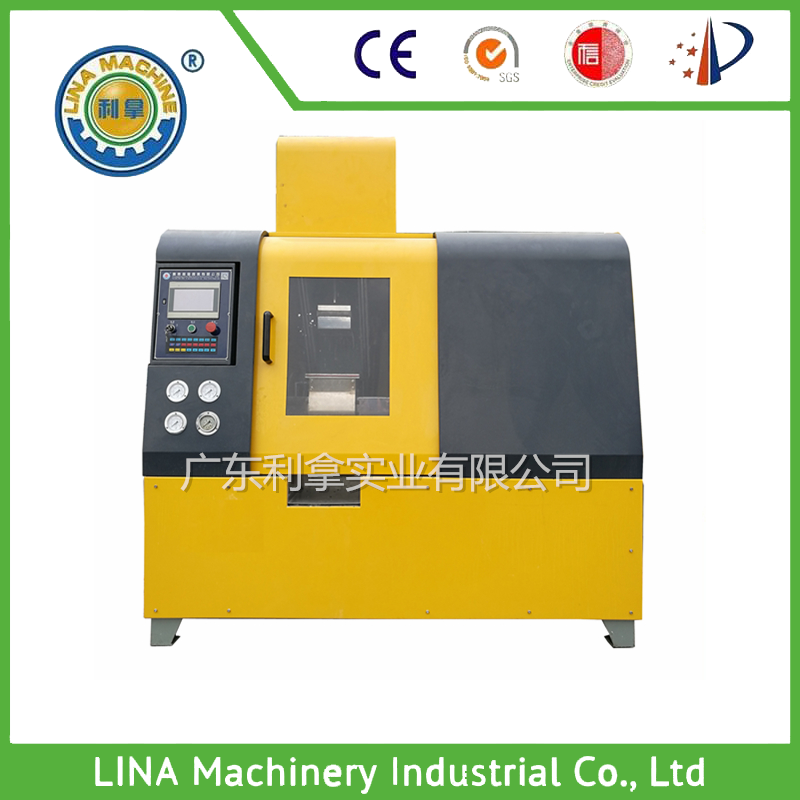

Introduction to laboratory mixer

The small laboratory mixer is a model specifically designed for research institutions/universities/laboratories. The machine is compact and suitable, with machine sizes ranging from 0.2-150L, and is suitable for mixing materials such as rubber, silicone, and plastic. A customized mixing machine with functions such as dust prevention, explosion prevention, hydraulic flipping, etc. can be made according to the user's materials, production capacity, and model size. Choose Guangdong Lina for customizing small laboratory refining machines. We are a manufacturer of small laboratory refining machines with nearly 20 years of experience. Welcome to consult for customization! Customized hotline: 18033023380

Types of laboratory mixers

0.2-150L mixing machine, dust-proof mixing machine, explosion-proof mixing machine, hydraulic flip mixing machine, etc

Suitable products for laboratory mixer

1. Rubber/silicone products: medical catheters, tires, shoes (rubber soles, sports shoes), sports balls, rubber bands, rubber tubes, adhesive tapes, shock-absorbing rubber, rubber rollers, rubber sponges, electronic rubber products, etc;

2. Mixing of chemical industry raw materials: mixing of chemical raw materials such as ABS, PVC, EVA, color masterbatch, cable materials, cable heat shrink tubing, low smoke and halogen-free materials, elastomers, rubber and plastic blends, wood plastic blends, and high calcium filling materials;

3. Mixing of raw materials for ceramics and metal products, such as phone covers, phone chip slots, razors, ceramic blades, etc.

Characteristics of laboratory mixer

This model is compact, occupies a small area, has high production efficiency, is environmentally friendly and energy-saving, has uniform mixing, and has good density of finished products. It is highly favored by research institutions/universities/laboratories and other industries.

Working principle of laboratory mixer

When the internal mixer is working, the two rotors rotate relative to each other, clamping the material from the feeding port and bringing it into the roller gap under the compression and shear of the rotor. After passing through the roller gap, it hits the lower top bolt edge and is divided into two parts, which respectively travel along the gap between the front and rear chamber walls and the rotor before returning to the upper part of the roller gap. During the flow around the rotor, the material is subjected to shear and friction everywhere, causing the temperature of the rubber material to rise sharply and the viscosity to decrease, increasing the wettability of the rubber on the surface of the compounding agent and ensuring full contact between the rubber and the compounding agent surface. The clumps of the compounding agent, together with the rubber material, pass through the gaps between rotors, between rotors and upper and lower top bolts, and between rotors and the interior walls of the mixing chamber. They are sheared and broken, surrounded by stretched and deformed rubber, and stabilized in a broken state. At the same time, the convex edges on the rotor cause the rubber material to move along the axial direction of the rotor, playing a role in stirring and mixing, so that the mixing agent is evenly mixed in the rubber material. The compounding agent is repeatedly sheared and broken, causing the rubber material to undergo deformation and recovery. The continuous stirring of the rotor ribs ensures that the compounding agent is evenly dispersed in the rubber material and reaches a certain degree of dispersion. Due to the much greater shear force on the rubber material during mixing in the internal mixer compared to the open mixer, the rubber mixing temperature is higher, resulting in a significantly higher efficiency of rubber mixing in the internal mixer than in the open mixer.
