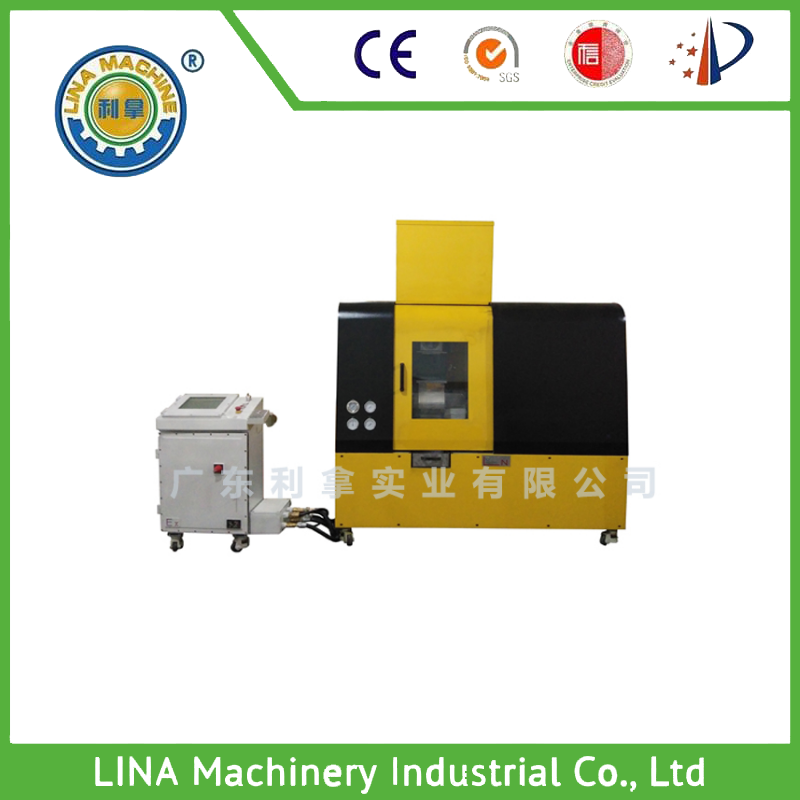

Introduction to Vacuum Mixing Machine

The Lina vacuum mixing machine has filled the gap in the industry where mixing machines cannot vacuum. For expensive materials that are toxic gases and cannot come into contact with oxygen, the vacuum mixing machine has demonstrated its capabilities, filling the gap in China's rubber and powder metallurgy industries.

Technical data of vacuum mixing machine

Characteristics of mechanical principles

1. Adopting“M-W”Pressure and casting mixing tank, not only sturdy and wear-resistant,And ensure that the material is evenly mixed and the physical properties change to achieve a year-on-year mixing effect. The anti leakage powder device adopts a secondary corner design,Can greatly improve the anti leakage powder function.Built in dust collector, convenient and fast dust recovery;

2. Coordination between automatic temperature control system and time control system,Make its operation precise, simple and easy to understand, and achieve rapid conversion of heating or cooling according to the set working temperature to ensure the quality of material mixing and dispersion effect and effective work rate；

3. According to the needs of the mixed material, it can be divided into manual and automatic control, which is easy to operate;

4. Adopting high-efficiency motors, with excellent power transmission, energy saving, and long lifespan;

5. The mixing tank of this machine is made of advanced special steel, and the surface is treated with wear-resistant steel. The surface is treated with high-end wear-resistant materials, which have excellent wear resistance and a longer service life than traditional ones1-2Twice. The mixing tank is a flip type, and the mixing shaft adopts a dry mechanical shaft seal to prevent leakage, making cleaning and color change simple and environmentally friendly；

6. Rotor structure of Lina mixer:The rotor consists of long edges, short edges, rotor body, and circulating cooling water channels on the rotor through cavity. One long edge and one short edge of the rotor form a set of edges, which are evenly distributed on the rotor body and extend in a spiral shape from the end of the rotor to the center of the rotor. The starting edge of the long edge is not connected to the end of the rotor, while the starting edge of the rectangular edge is connected to the end of the rotor. The rotor through type inner cavity wall and edge parts are processed with a rotary circulating cooling water channel. As a result, the axial force of the rotor reaches equilibrium during operation, generating less heat, achieving sufficient mixing, accelerating the distribution of the vulcanization system, increasing the filling coefficient, and significantly improving the cooling effect, thus improving the quality and efficiency of the mixed rubber;

The design characteristics and functions of rotor blades (in terms of design structure, it is actually an ideal rubber and plastic industrial mixer rotor in the industry)

The manufacturing process and materials of the rotor of the Lina mixer:

1. Manufacturing process of rotor blades:Welding for imported alloy steel-High precision polishing and grinding-carburizing-The surface is treated with high-end wear-resistant materials to ensure wear resistance and durability；

2. Material:The rotor axis is composed of38CrMoALAnitridingHV950-1050process,Depth is0.6-0.75MM,Brittle not greater than11level,To ensure high hardness of the rotor shaft,High carrying capacity,Strong torque,Continuous axis,Smooth transmission;

3. The reverse gear and gear shaft are made of alloy copper and wrapped with a secondary arc,Its function is not only to have a long lifespan but also to provide interlocking protection for the mixing chamber;

4. The reverse gear reducer adopts a new planetary gear, which can save more than other specifications of reducers1/4The above volume and weight, each gear has undergone heat treatment and grinding to reduce friction losses during operation, and the same load in different directions cannot be achieved by traditional gearboxes;

5. The gear system of this machine's gearbox is made of high-grade chrome and special steel, and is precision machined by advanced units imported from West Germany. It has high accuracy, excellent assembly quality, is not easily worn or broken, and has high transmission efficiency,And low noise,Extremely low failure rate,Power saving.

Vacuum mixing machine service commitment

1、On site installation guidance；

2、Responsible for debugging and testing the supplied equipment,Ship after passing the inspection;

3、Long term provision of technical consulting services;

4、Provide instructions for the recipient to operate and guide;

5、One year warranty under correct operation of the crew,And ensure long-term supply of spare parts;

6、Within and outside the warranty period,After receiving notification of equipment malfunction from the buyer, the supplier,3Provide a clear solution within the hour;If supplier personnel are required to be present,Domestically, there are72Arrive for repair within hours,Pearl River Delta region24Arrived within hours(Excluding travel time).Foreign users may negotiate with foreign merchants based on their visa status.

Kind reminder: Please consult for detailed configuration, parameters, and more functional options.
