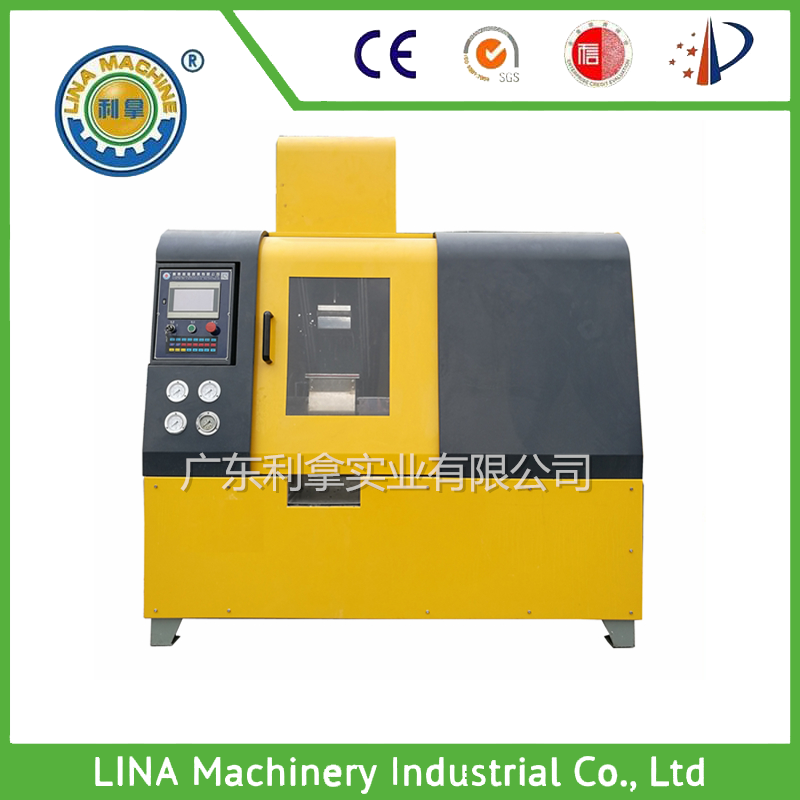

Usage of 0.5L internal mixer machine

Linacard0.5Linternal mixersuitforeachPlanting rubberChemical raw materials such as plastic raw materials and engineering modified materialsinpinchrefine、disperse、mixcombine, synthesize、plasticizationOther purposes.

LinacardThe 0.5L internal mixer is a small testing equipment in the industry, which is a product and supplier selected by major universities, research institutions, and other units. The 0.5L internal mixer is a type of small or micro experimental internal mixer, which is more commonly used in universities and research institutions for testing purposes。

Application scope of 0.5L internal mixer

Linacard0.5Linternal mixerwidely used inEVA、 PVC、TPR、PE、PP、PC、 Metal powder, ceramic powder, functional masterbatch, rubber additives, shoe materials, rubber tires, sealing accessories, electronic products, wires and cables, automotive products, and other raw materials for rubber and plastic products.

Technical characteristics of 0.5L internal mixer

Linacard0.5Linternal mixerSmall footprint, energy-saving, safe, and goodoperationGood dispersibilityLow noise, long service life, extremely low maintenance frequency, built-in dust collector,All technology comes from Taiwan, with core components imported and purchased.LinaSmall mixerDesignated by numerous domestic universities, we have established long-term cooperative relationships with over 30 universities across the country.

Mechanical principle and characteristics of 0.5L internal mixer

1. The 0.5L internal mixer adopts the "M-W" pressure type and casting mixing tank, which is not only sturdy and wear-resistant, but also ensures that the material is mixed evenly and the physical properties change to achieve the same effect as the previous mixing. The anti leakage powder device adopts a secondary corner design, which can greatly improve the anti leakage powder function Built in dust collector, convenient and fast dust recovery.

2. The combination of automatic temperature control system and time control system ensures precise and easy to understand operation, and can quickly switch between heating or cooling according to the set working temperature to ensure the quality of material mixing and dispersion effect and effective work rate

3. It can be divided into manual and automatic control according to the needs of the mixed material, and is easy to operate.

4. Adopting high-efficiency motors, with excellent power transmission, energy saving, and long lifespan.

Technical parameters of 0.5L internal mixer

Mixed capacity ----------------------------0.5L

Motor power: 2.2KW

Flip motor --------------------------------------------------------------

Flip angle ---------------------------110 °

rotor speed---------------------------Fixed speed (optional variable frequency adjustable)

Cooling method---------------------------Water cooling (suitable for rubber refining) 0.2-0.4Mpa

Heating method---------------------------Optional electric heating

Output ---------------------------------------------------------------------

Appearance（Length × Width × Height)---------------------1500*900*1500mm

Machine weight: approximately 800KG

Kind Reminder:This machine can be programmed with PLC according to customer requirements. For more functional options and configurations, please consult.
