Choose Guangdong Lina for the 0.2L mixer. With nearly 20 years of experience as a 0.2L mixer manufacturer, we have a 30000 square meter processing base, one Lina Technology Park, and three branch factories. Over the years, we have accumulated rich technical experience and over 4000 successful cases.

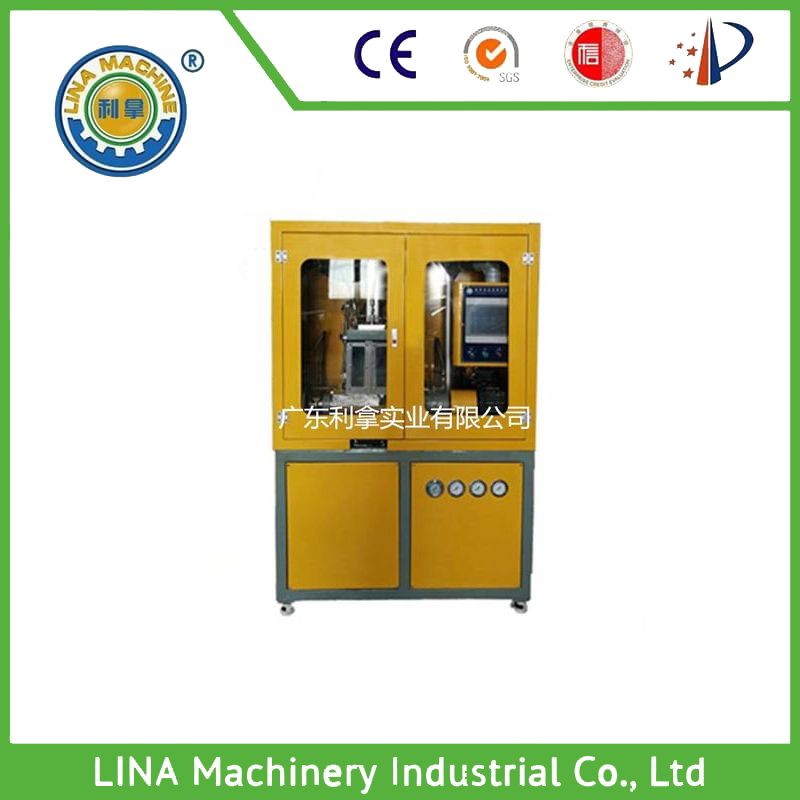

Usage of 0.2L internal mixer

The Lina brand 0.2L internal mixer is suitable for kneading, dispersing, mixing, plasticizing and other purposes in various chemical raw materials such as rubber, plastic raw materials and engineering modified materials

The Lina brand 0.2L internal mixer is a small testing equipment in the industry, which is a product and supplier selected by major universities, research institutions, and other units. The 0.2L internal mixer is a type of small or micro experimental internal mixer, which is more commonly used for testing in universities and research institutions.

The 0.2L internal mixer, also known as the 0.2L rubber mixing machine, is used in the industry. If a customer asks about a rubber mixing machine, it is necessary to distinguish whether it is an internal mixer or an open mixer. If it is a rubber mixing machine of several liters, then it is an internal mixer, and if it is a rubber mixing machine of several inches, then it is an open mixer.

Application scope of 0.2L internal mixer

The Lina brand 0.2L internal mixer is widely used as a raw material for rubber and plastic products such as EVA, PVC, TPR, PE, PP, PC, metal powder, ceramic powder, functional masterbatch, rubber additives, shoe materials, rubber tires, sealing accessories, electronic products, wires and cables, automotive products, etc.

Technical characteristics of 0.2L internal mixer

The Lina brand 0.2L internal mixer has a small footprint, energy saving, safety, easy operation, good dispersion, low noise, long service life, extremely low maintenance frequency, and built-in dust collector. All technology comes from Taiwan, and core components are imported and purchased. Lina small internal mixer has been designated and selected by many domestic universities, and has established long-term cooperative relationships with more than 30 universities across the country.

Mechanical principle and characteristics of 0.2L internal mixer

1. The 0.2L internal mixer adopts the "M-W" pressure type and casting mixing tank, which is not only sturdy and wear-resistant, but also ensures that the material is mixed evenly and the physical properties change to achieve the same effect as the previous mixing. The anti leakage powder device adopts a secondary corner design, which can greatly improve the anti leakage powder function Built in dust collector, convenient and fast dust recovery.

2. The combination of automatic temperature control system and time control system ensures precise and easy to understand operation, and can quickly switch between heating or cooling according to the set working temperature to ensure the quality of material mixing and dispersion effect and effective work rate

3. It can be divided into manual and automatic control according to the needs of the mixed material, and is easy to operate.

4. Adopting high-efficiency motors, with excellent power transmission, energy saving, and long lifespan.

Technical parameters of 0.2L internal mixer

Mixed capacity ---------------------------0.2L

Drive motor -----------------------------2.2KW

Flip motor --------------------------------------------------------------

Flip angle ---------------------------110 °

Rotor speed -------------------------- Variable frequency adjustable

Cooling method: Water cooling (suitable for rubber refining) 0.2-0.4Mpa

Heating method -------------------------- electric heating

Production rate: -0.15/0.8 KG (per batch)

Appearance (length * width * height) ----------------------------------------------600 * 500 * 1500MM

Machine weight: approximately 600KG
