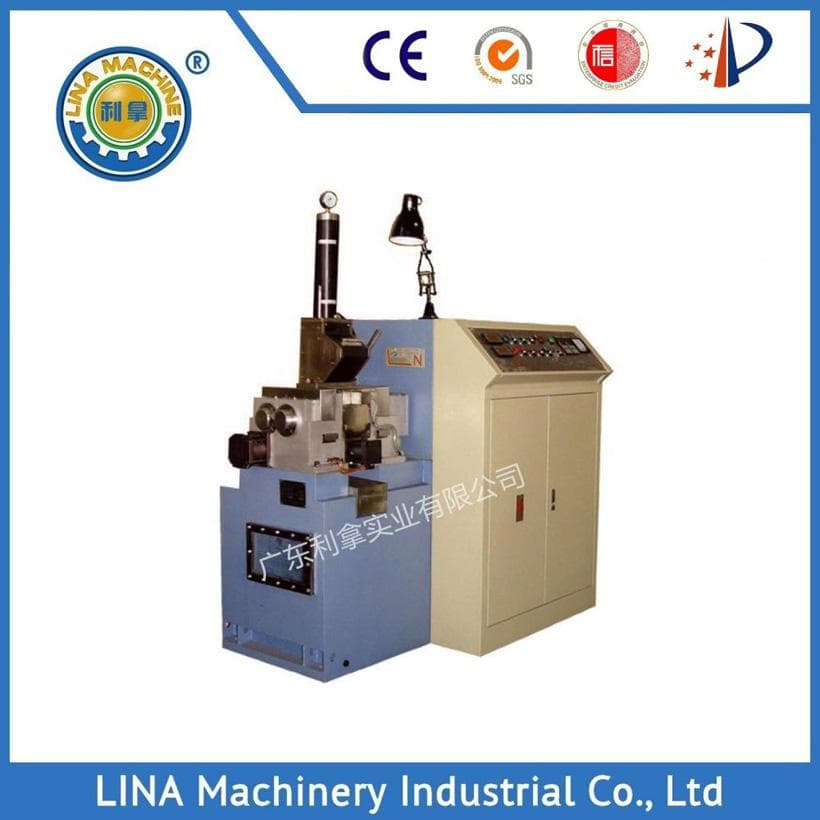

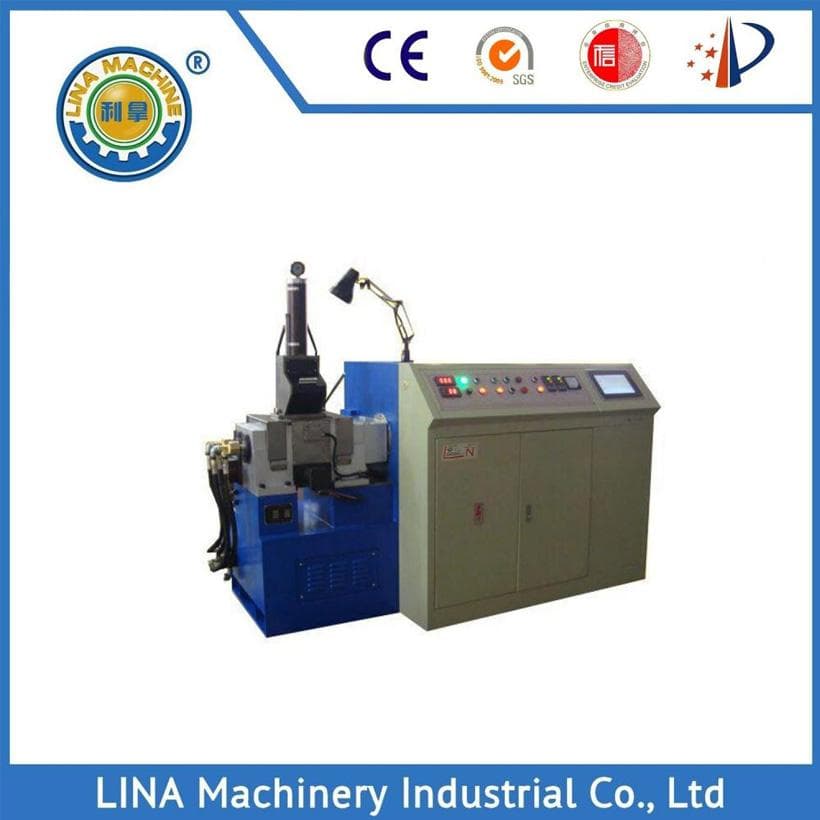

Lab Rubber Mixer is a machine used in laboratories for the mixing of rubber compounds. Rubber mixing is a crucial process in the production of various rubber products such as tires, seals, hoses, and many others. The purpose of a Lab Rubber Mixer is to blend different types of rubber materials with various additives, fillers, and chemicals to achieve desired properties such as elasticity, durability, and resistance to heat, chemicals, and abrasion.
Lab Rubber Mixer are essential tools for research and development in the rubber industry, allowing scientists and engineers to experiment with different formulations and optimize rubber compounds for specific applications. They help in determining the optimal mixing parameters such as temperature, speed, and mixing time to achieve desired properties and performance characteristics in the final rubber product. Additionally, Lab Rubber Mixer also play a crucial role in quality control by ensuring consistency and reproducibility in the mixing process.

Characteristics:
1. Higher cleanness: Clean up the material without dead corners; The mixing chamber and rotors can be separated completely; All surface that directly contact with the material is mirror polished, which ensure all the materials easy to clean without stickiness.
2. Wearable inner cavity: Imported special new alloy steel and vacuum heat treatment are adopted. Strong wear resistance, resistance to horizontal erosion, corrosion resistance and high glossy finish effects are achieved.
3. Adjustable rotor speed ratio: The speed ratio of rotors is adjustable, which target at some special material function requirements and achieve best dispersion effect and efficiency.
4. Temperature control system: A lot of trials report that stage temperature control has the essential effect of ceramics' color difference.
5. PLC intelligent control system: 1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code. 2. The control system can be set up to 20 mixing steps, save 20 recipe spaces. 3. The control system is capable of remote importing of the process recipe and data monitoring, and communicating with MES via Ethernet communication interface. 4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.

Item	Specification	Remarks
Type	LN-XM-2.0
Mixing Capacity	2 liter
Production Yield	2.0-4.0 KG per time	Subject to the proportion of material and dispersion requirements.
Main Motor Power	22 KW
Maximum Separation	/
Temperature Control	Heating or/and cooling	Electric/oil/steam heating and circulating water cooling.
Weight	About 2200 KG
Standard Dimensions	About 1800*1200*2000 mm
